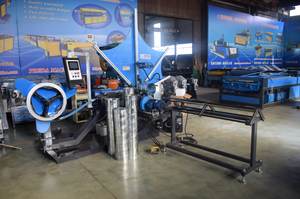

Spiral Pipe Machine Band Type
Last updated: October 12, 2026
Band-type spiral pipe machine for flexible diameter changes. Ideal for small-batch, varied-size production.
Technical Specifications
What is a Spiral Pipe Machine Band Type?
A spiral duct forming machine (also called a spiral tubeformer) is an industrial machine that continuously manufactures round spiral ducts from galvanized steel, stainless steel, or aluminum coils. The machine forms a helical seam by rotating metal strip around a fixed mandrel, producing ducts with superior structural rigidity and air-tightness compared to rectangular ducts. Spiral duct machines are widely used in HVAC ventilation, dust collection, and exhaust systems.
Key Features
- Quick diameter changeover
- Band forming for versatile sizes
- Compact footprint
- Easy operation and maintenance
Still Losing Money to Inconsistent Spiral Duct Quality?
Every HVAC duct shop faces the same bottleneck: manual spiral duct forming. When your team spends hours on hand-forming seams and cutting lengths, your production capacity drops, labor costs rise, and deadlines slip. The Spiral Pipe Machine Band Type is engineered to eliminate these inefficiencies — automating band type spiral pipe machine while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your flexible diameter spiral duct workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The Spiral Pipe Machine Band Type operates on a proven principle: band type spiral pipe machine should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Coil Feeding & Leveling

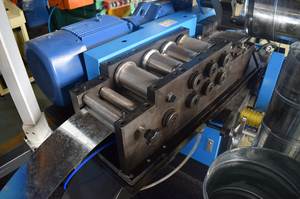

Galvanized steel or aluminum coil is automatically fed through precision leveling rollers, eliminating coil memory and ensuring a perfectly flat strip enters the forming head.
Continuous Spiral Forming
The strip is wrapped around the forming mandrel while the lock seam is simultaneously rolled and crimped. This creates the characteristic spiral seam that gives round ducts their superior strength and airtightness.

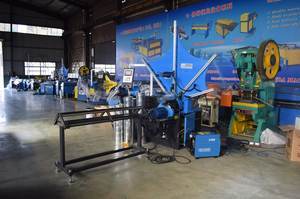

Precision Length Cutting

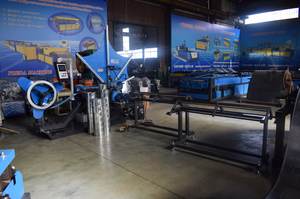

A flying shear or slitter cuts the continuous tube to your exact programmed length without stopping production — critical for maintaining high output rates.

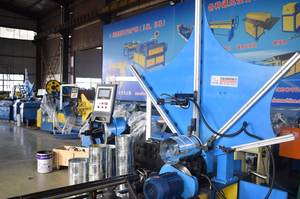

Automatic Discharge
Finished ducts are automatically ejected onto the collection table, ready for flange installation or direct shipment.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Inconsistent duct diameter
Ducts don't fit together on site, causing rework and delays |
✓ PLC-controlled diameter accuracy ±0.5mm
Every duct fits perfectly on first try, zero rework |
|
✕ Slow manual production
2-3 workers needed per machine, max 5-8 ducts/hour |
✓ Automated continuous production up to 38 m/min
One operator produces 30-60 ducts/hour |
|
✕ Air leakage at seams
Energy loss, failed pressure tests, customer complaints |
✓ Precision spiral lock seam with 360° crimping
Leakage class C/D compliance, passes every pressure test |
|
✕ Material waste from bad cuts
10-15% scrap rate from manual cutting errors |
✓ CNC flying shear with ±1mm length accuracy
Scrap rate below 2%, significant material savings |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Projects
Shopping malls, office towers, hospitals — anywhere large volumes of round duct are needed for main supply and exhaust runs.
Industrial Ventilation
Factory exhaust systems, dust collection, fume extraction where durable, airtight round duct is essential.
Tunnel & Underground
Metro stations, parking garages, underground facilities requiring high-pressure, large-diameter ductwork.
Duct Fabrication Shops
Sheet metal shops producing spiral duct for contractors — the core revenue machine for round duct specialists.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Band Type Spiral Pipe Machine: The Long-Run Specialist
A band-type machine forms tube through a set of bands rather than a continuously adjustable head. That makes it fast and very consistent on a single diameter, and slow to change between diameters. It is a production machine for long runs, not a flexible job-shop machine.
| Machine | Diameter change | Consistency | Best fit |
|---|---|---|---|
Spiral Pipe Machine Band Type This machine — band-type forming | Requires a band change Minutes, not seconds | Very high on a single diameter The reason to choose it | Long production runs at one diameter Typical in pipe and ventilation tube production, not in jobbing work |
Continuously adjustable | Fast — a setting change High | Good across the range Flexible | Mixed diameters through the day The default choice for a commercial duct shop |
Large diameter, adjustable | Fast High | Good at large diameter Heavy duty | Large-diameter work with changing sizes Choose on diameter range |
Adjustable with in-line cutting | Fast High | Good, with integrated cutting Cut-to-length focus | Cut-to-length accuracy is the priority Not a band machine — different production philosophy |
End finishing | N/A Downstream | N/A Complementary | You need finished tube ends Consider it as part of the line |
Getting the Most From a Band-Type Machine
The whole economics of this machine rest on changeover discipline. Get the change fast and repeatable and the machine is extremely productive; treat it casually and it becomes the slowest machine in the shop.
- 1. This is the single decision that determines whether the machine pays. Group orders by diameter rather than running them in sequence of arrival.
- 2. Write the sequence, keep the tools at the machine, and time the change. A documented change is typically half the duration of an improvised one.
- 3. Waiting for a band set is downtime. If a diameter is run monthly, it justifies its own set.
- 4. A damaged band produces metres of scrap before anyone notices. Inspect on the bench and reject there.
- 5. Diameter and seam both need confirming after a band change. Three metres of scrap is cheap insurance.
- 6. These two numbers tell you the true optimum run length, which is usually longer than planners assume.
- 7. Bands are precision tooling. Storage damage is a common and entirely avoidable source of poor tube quality.
- 8. A change that only one person can do is a single point of failure in the schedule.
Band-Type Machine Faults: Symptom, Cause, Fix
Almost every fault on this machine traces to the bands: condition, fitting or the wrong set for the material. Inspect them first.
| Symptom | Most likely cause | What to do |
|---|---|---|
Diameter out after a band change Wrong band set or an incomplete fit | Bands are diameter-specific and must be fully seated The classic post-change fault | Confirm the band set against the diameter and re-seat, then run 3 m and measure Never run production before measuring |
Seam poor at the start of a run Band not seated or strip tension not yet stable | The first metres after a change are the least reliable Normal, and the reason for running scrap | Run 3 m of scrap and inspect the lock before starting production Stabilise tension before adjusting the bands |
Surface scoring along the tube Damaged band surface | A damaged band marks every metre it forms Often caused by storage or handling damage | Inspect bands on the bench before fitting and reject damaged ones Store sets on a rack, stacked in a box damages them |
Changeover taking far longer than expected No documented sequence or tools not at hand | Most changeover time is looking for tools and deciding the sequence A process problem, not a machine problem | Write the sequence, stage the tools at the machine, and time the change Two trained people will halve it again |
Material will not form cleanly Band set specified for a different gauge | Band sets are cut for a gauge range A specification mismatch rather than a fault | Verify thickness with a micrometer and compare with the band set specification Do not force material through the wrong bands |
Tube taper along its length Tension drift | Strip tension instability, as on any spiral machine Independent of the band-type principle | Stabilise tension and measure at three points along a test piece Re-check after any material change |
