Heavy Duty Spiral Tubeformer PD-2000
Last updated: October 12, 2026

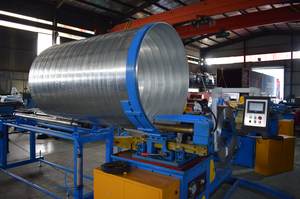

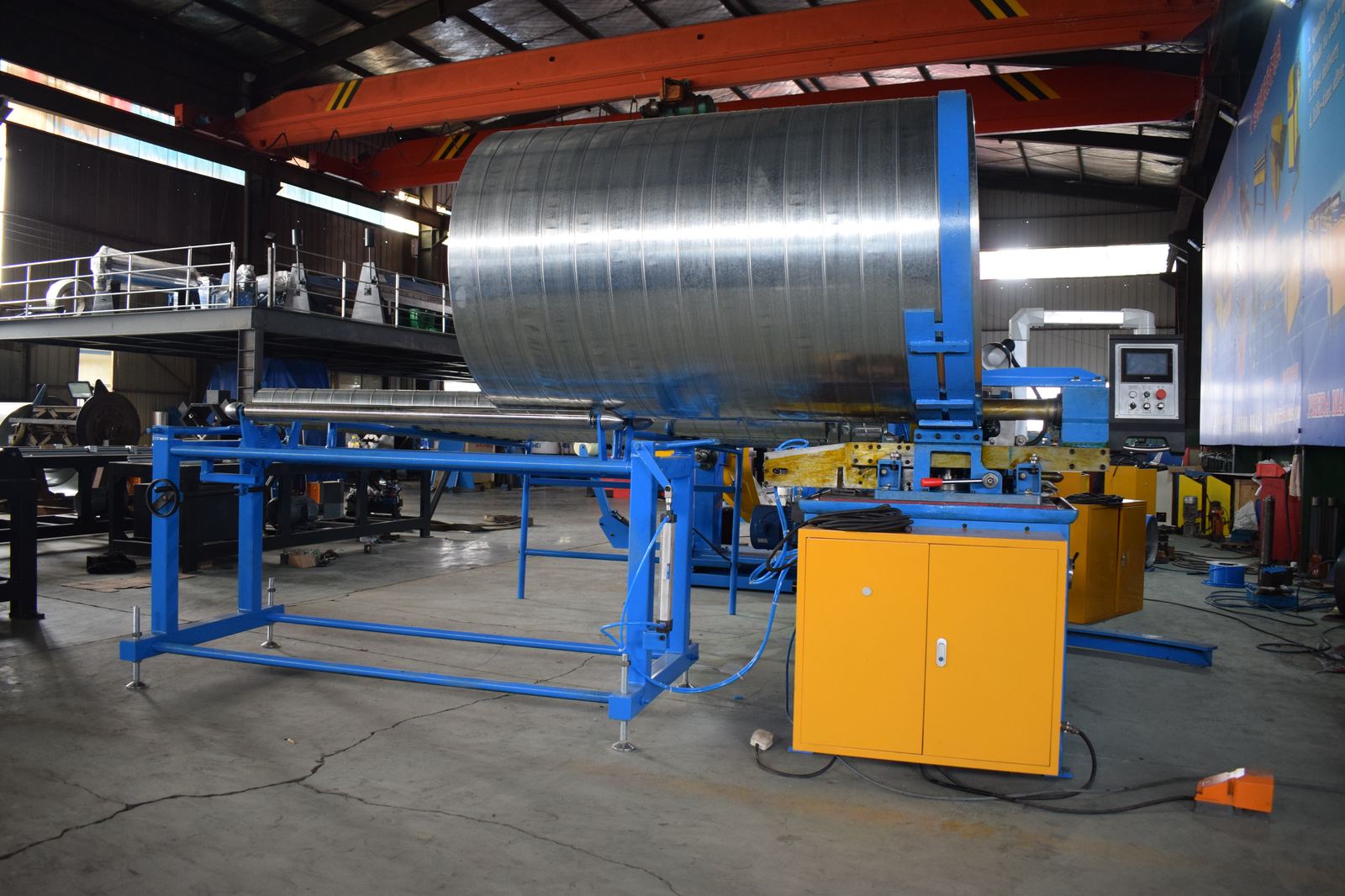

Heavy-duty spiral tubeformer for large diameter duct production up to 2000mm. Reinforced frame and heavy-duty components for industrial applications.
Technical Specifications
What is a Heavy Duty Spiral Tubeformer PD-2000?

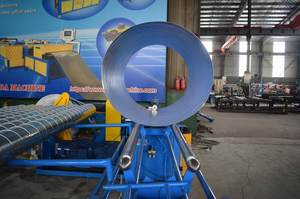

A spiral duct forming machine (also called a spiral tubeformer) is an industrial machine that continuously manufactures round spiral ducts from galvanized steel, stainless steel, or aluminum coils. The machine forms a helical seam by rotating metal strip around a fixed mandrel, producing ducts with superior structural rigidity and air-tightness compared to rectangular ducts. Spiral duct machines are widely used in HVAC ventilation, dust collection, and exhaust systems.
Key Features
- Large diameter up to 2000mm
- Reinforced heavy-duty frame
- Industrial-grade components
- Fixed mould for consistent roundness
- For industrial large duct applications
Still Losing Money to Inconsistent Spiral Duct Quality?
Every HVAC duct shop faces the same bottleneck: manual spiral duct forming. When your team spends hours on hand-forming seams and cutting lengths, your production capacity drops, labor costs rise, and deadlines slip. The Heavy Duty Spiral Tubeformer PD-2000 is engineered to eliminate these inefficiencies — automating heavy duty spiral tubeformer while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your PD-2000 large diameter workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The Heavy Duty Spiral Tubeformer PD-2000 operates on a proven principle: heavy duty spiral tubeformer should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Coil Feeding & Leveling
Galvanized steel or aluminum coil is automatically fed through precision leveling rollers, eliminating coil memory and ensuring a perfectly flat strip enters the forming head.
Continuous Spiral Forming
The strip is wrapped around the forming mandrel while the lock seam is simultaneously rolled and crimped. This creates the characteristic spiral seam that gives round ducts their superior strength and airtightness.
Precision Length Cutting
A flying shear or slitter cuts the continuous tube to your exact programmed length without stopping production — critical for maintaining high output rates.
Automatic Discharge
Finished ducts are automatically ejected onto the collection table, ready for flange installation or direct shipment.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Inconsistent duct diameter
Ducts don't fit together on site, causing rework and delays |
✓ PLC-controlled diameter accuracy ±0.5mm
Every duct fits perfectly on first try, zero rework |
|
✕ Slow manual production
2-3 workers needed per machine, max 5-8 ducts/hour |
✓ Automated continuous production up to 38 m/min
One operator produces 30-60 ducts/hour |
|
✕ Air leakage at seams
Energy loss, failed pressure tests, customer complaints |
✓ Precision spiral lock seam with 360° crimping
Leakage class C/D compliance, passes every pressure test |
|
✕ Material waste from bad cuts
10-15% scrap rate from manual cutting errors |
✓ CNC flying shear with ±1mm length accuracy
Scrap rate below 2%, significant material savings |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Projects
Shopping malls, office towers, hospitals — anywhere large volumes of round duct are needed for main supply and exhaust runs.
Industrial Ventilation
Factory exhaust systems, dust collection, fume extraction where durable, airtight round duct is essential.
Tunnel & Underground
Metro stations, parking garages, underground facilities requiring high-pressure, large-diameter ductwork.
Duct Fabrication Shops
Sheet metal shops producing spiral duct for contractors — the core revenue machine for round duct specialists.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
PD-2000: When Large Diameter Justifies the Investment
The PD-2000 exists for the work a mid-range tubeformer cannot do: large diameter and heavier gauge, run as routine rather than as an exception. It costs more, occupies more floor, and is the wrong buy for a shop whose round duct is mostly Ø100–600 mm.
| Model | Diameter | Gauge | Verdict |
|---|---|---|---|
Heavy Duty Spiral Tubeformer PD-2000 This machine — large diameter, heavy gauge | Up to Ø1600 mm Industrial and large commercial | 0.4–1.5 mm Heavier gauge at large diameter | Correct when large-diameter work is routine Wrong when it is occasional — subcontract those jobs instead |
Mid-range machine | Ø80–1200 mm Commercial sweet spot | 0.4–1.2 mm Standard commercial gauge | The right default for a general commercial shop Lower capital, smaller footprint, faster set-up |
Large diameter with in-line cutting | Ø80–1600 mm Comparable range | 0.4–1.2 mm As specified | You need cut-to-length integrated with forming Compare on cutting requirement, not on diameter alone |
Band-type forming | Defined by tooling bands Long runs of one size | Per band set Tooling-dependent | Very long runs at a single diameter A different production philosophy, not a bigger machine |
Makes the elbows | N/A — fittings Downstream of the tubeformer | Matches duct gauge Completes the round line | You want to make fittings as well as straight tube The natural companion to a large-diameter tubeformer |
Running a Large-Diameter Tubeformer: What Changes
Above about Ø1000 mm the physics change. Tube weight, springback and handling all become real constraints, and the set-up has to account for them.
- 1. Large-diameter tube is heavy and will sag or ovalise if unsupported. Roller support at the outfeed is not optional at these sizes.
- 2. The same material springs back more when formed to a larger radius. Expect to under-form slightly and check against the diameter table.
- 3. One operator cannot safely manage large-diameter tube alone. Write the routine and train two people.
- 4. Longer than on a mid-range machine, because the first metres include the settling of both the machine and the support.
- 5. Large tube can measure correct on diameter and still be out of round. Measure at two orientations, 90 degrees apart.
- 6. Tension variation at large diameter produces visible diameter drift within a single tube. Log tension with each set-up.
- 7. Heavy gauge seams are less forgiving. Cut and inspect the lock at every gauge and diameter combination you run.
- 8. On a large machine the combination matters, not each variable alone. One card per pair is the only reliable approach.
PD-2000 Faults: Symptom, Cause, Fix
Large-diameter faults tend to be handling and support issues that present as dimensional faults. Check the support before adjusting the machine.
| Symptom | Most likely cause | What to do |
|---|---|---|
Tube ovalises after leaving the machine Outfeed support insufficient | Large tube sags under its own weight without support The most common large-diameter fault, and not a machine setting | Add roller support along the outfeed and re-measure at two orientations Support spacing of about 1.5 m is typical — check the manual |
Diameter correct at the head, wrong further along Tension drift during the run | Long tubes amplify any tension instability Shows as a taper along the tube | Stabilise and log tension, then measure at three points along a 5 m test piece Re-check after any material change |
Seam opens under handling Lock incomplete at heavier gauge | Heavy gauge needs more forming pressure on the lock Sometimes only shows once the tube is moved | Cut and inspect the lock formation, and confirm the gauge against the roll set spec Do not compensate by slowing the machine |
Drive labours at maximum diameter Operating at the limit of the specified range | Large diameter and heavy gauge together is the heaviest duty the machine sees A specification boundary rather than a fault | Confirm the diameter and gauge combination is inside the specified envelope Reduce speed at the limit; do not run continuously at maximum load |
Surface marking along the tube Roll damage or debris | A sliver rolled into the surface marks every metre after it Often traced to a worn slitting blade | Clean the rolls with a brass brush and inspect the strip edge Never use steel on the roll surface |
Cut length varies more than expected Length control, not forming | On long tube, small length errors are more visible Usually a separate setting rather than a forming issue | Verify the length setting on the first and last piece of every batch Log the measurements for a week before concluding it is stable |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 500-1000m² of duct per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your Heavy Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
