Your Duct Leaks at the Corners. The Seam Locker Is Usually Why.

Why the Corner Is the Weak Point

A rectangular duct section has four longitudinal corners. Every one of them is a fold in the sheet where two formed edges meet — and where the Pittsburgh lock has to seat perfectly to seal. The middle of a seam is easy to get right: the machine runs steady, pressure is even, and the lock clinches uniformly. The first and last 50 mm of every seam are where things go wrong, because that's where the sheet enters and exits the machine, where pressure ramps up and down, and where any inconsistency in the fold gets concentrated.

So when a site calls about leaks, the pattern tells you the story before you look at anything else. Leaks along the straight runs? Look at the duct joints, the flanges, the gaskets. Leaks at the corners? Look at the seam locker — and specifically at how the ends of the panels were handled.

Pittsburgh Lock vs Whisper Lock: Know What You're Forming

Two longitudinal seam profiles dominate rectangular duct, and your locker needs to match the profile you quote. They're not interchangeable.

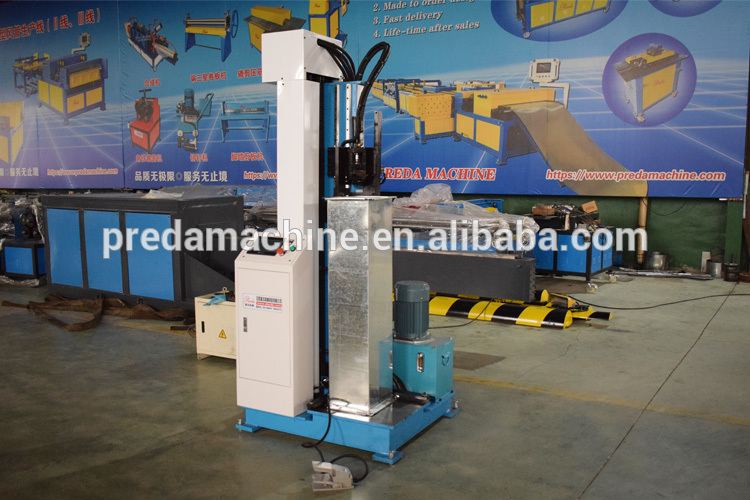

The distinction matters more than it looks. A Pittsburgh lock is a mechanical interlock — two profiles that hook into each other and are then flattened. It's strong, fast, and the default for SMACNA-style commercial duct. A Whisper profile carries an extra leg that creates a sealing pocket, which is why it's specified for jobs with written leakage classes. Most shops run Pittsburgh as the daily standard and need Whisper capability only for specific contracts. A locker that handles both — as the Preda CNC hydraulic seam locker does in its 0.5–1.5 mm range — means you don't turn away mixed-spec work or run a second machine.

Why Hydraulic + CNC Fixes the Corner Problem

Mechanical lockers have a subtle weakness that shows up exactly where you don't want it: the middle of a wide panel. A spring-loaded or purely mechanical clinch applies even pressure at the edges of the panel, but softens toward the centre as the tooling flexes. On a 1500 mm panel, the lock is tight at both ends and loose in the middle — or, depending on setup, the ends never seat properly because the operator compensated for the middle. Either way, corners suffer.

Two things change with a hydraulic machine:

• Constant clamping pressure across the full width. Hydraulics don't sag in the middle. A 1550 mm panel gets the same clinch at its centre as at its edges, which is the difference between a seam that seals and a seam that leaks at the far corner.
• CNC depth control per gauge. The correct seam depth for 1.0 mm sheet is different from 0.8 mm, and coil thickness varies ±0.05 mm between suppliers. CNC stores the depth per gauge and re-sets itself, instead of relying on the operator's trial-and-error from the morning shift.

The Spec Sheet

The numbers, straight from the machine we keep referencing in this guide:

Two values deserve attention. 1550 mm covers essentially every standard rectangular duct size a commercial shop makes — the machine swallows full-width panels without a second pass. 0.5–1.5 mm spans the whole commercial gauge range, from 26-gauge light panel to 18-gauge heavy duct, which is where lighter mechanical lockers stall.

The Defect Table: Turn Field Complaints Into Machine Settings

This is the table our field support engineers actually use. When a shop calls about seam problems, we walk them through it row by row:

Setup Sequence That Prevents Corner Leaks

Beyond the defect table, there's a setup order that eliminates most corner problems before they start. Teach it to every operator who touches the locker:

1. Feed from the flange end. Start the seam at the end that will carry the flange connection — the tightest corner ends up protected by the flange itself.
2. Set depth against real sheet. Scrap of the same gauge and coil, not the wall chart. Coil thickness varies between suppliers; the chart lies.
3. Pre-fold both ends. Clinch the first and last 30–50 mm manually or with an end-fold tool. This removes the entry/exit distortion that causes corner leaks.
4. Run the full pass, then check with a feeler. A correctly clinched Pittsburgh lock is uniformly tight; if a 0.1 mm feeler slides in at the corners, the depth is too shallow.
5. Log the settings. If the machine is CNC, the program is the log. If it's hydraulic-only, write gauge, coil, depth and pressure on the machine card. Tribal knowledge is the #1 cause of inconsistent seams between shifts.

Does the Upgrade Pay?

Mechanical lockers run roughly half the price of a CNC hydraulic unit — that's the honest starting point. The payback comes from rework, and seam rework is expensive because it happens at the end of the fabrication cycle, when the duct is fully built. The numbers for a mid-size duct shop:

Even a conservative 2% rework saving on $300k of annual ductwork covers the premium in about 18 months. There's also the quieter part of the payback: consistent seams pass a site leak test without the field crew spending a day re-sealing. That saving shows up on the next quote, when your leakage-class work stops carrying a rework allowance.
