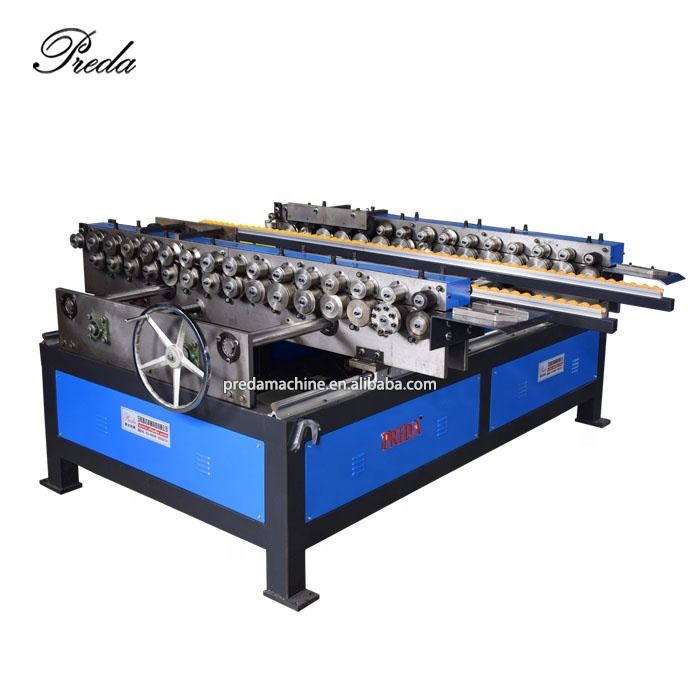

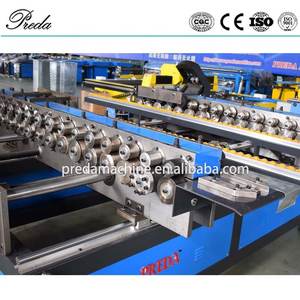

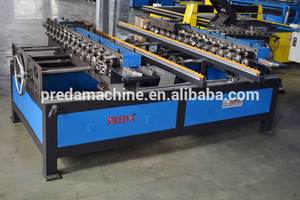

Dual Head Flange Forming Machine DTDF-15
Last updated: October 12, 2026
Dual-head TDF flange forming machine for simultaneous both-side forming, enhanced efficiency for duct manufacturing.
Technical Specifications
What is a Dual Head Flange Forming Machine DTDF-15?
A flange forming machine is sheet metal equipment that produces TDF (Transverse Duct Flange) or TDC (Transverse Duct Connector) flanges on the edges of rectangular duct panels. These flanges allow duct sections to be bolted together with gaskets for air-tight connections. Flange formers are typically used in conjunction with auto duct lines or as standalone machines for custom ductwork fabrication.
Key Features
- Two-side forming in single pass
- Increases productivity by 50%
- Precision flange dimensions
- Heavy-duty gear drive system
- Quick setup and changeover
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The Dual Head Flange Forming Machine DTDF-15 is engineered to eliminate these inefficiencies — automating dual head flange forming while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your DTDF-15 TDF workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The Dual Head Flange Forming Machine DTDF-15 operates on a proven principle: dual head flange forming should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.

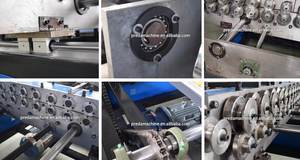

Flange Roll Forming
Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.
Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Dual Head vs Single Head: The Real Trade-Off
A dual-head machine forms both edges of a panel in one pass, which roughly halves the handling time per panel. What the brochures do not say is that the saving only materialises if your infeed can keep both heads fed — otherwise you have paid for capacity you cannot use. Below roughly 600 panels a day, a single-head machine with two operators is usually the better return.
| Configuration | Throughput | Operator requirement | Best fit |
|---|---|---|---|
Dual Head DTDF-15 This machine — both edges in one pass | Up to 15 m/min on both edges One pass per panel | Two operators at the infeed at full speed One can manage at reduced speed | Flanging is the bottleneck and volume exceeds ~600 panels a day Also suits shops short of floor space for two machines |
One edge per pass, panel turned manually | 8–15 m/min per edge Two passes per panel | One operator Lower skill requirement | Standard commercial volume with one operator Cheapest way to stop hand-applied angle iron |
One edge per pass, heavier gauge | 8–15 m/min per edge Two passes per panel | One operator Heavy-gauge work | Gauge is the constraint rather than throughput 18 ga work at moderate volume |
Flange plus cleat in one handling | Same as dual head Plus corner preparation | Two operators Removes a downstream station | You want corners prepared inline rather than at a separate bench Higher capital, fewer operators |
TDC profile, single or dual head | Depends on configuration As specified | As specified Industrial and high-static systems | The specification calls for TDC Profile is not interchangeable with TDF |
Getting a Dual Head Machine to Actually Run at Capacity
The machine is rarely the limiting factor on a dual-head line. Infeed discipline and gauge consistency are. Work through these before you conclude that the machine is slow.
- 1. A dual head is set for a panel width. Running mixed widths means resetting the head position between panels, which destroys the throughput advantage. Batch by width.
- 2. Form one panel and measure both flanges. If they differ by more than 0.2 mm, one head needs adjustment before you run production.
- 3. A 1.5 m panel supported only at the entry will sag into the second head and produce a flange that is correct at one end and short at the other.
- 4. Changing gauge means re-setting both heads. Group the day's work by gauge and you will recover an hour of set-up time.
- 5. The dual head removes a pass, not a handling step. Two people at the machine are what converts the machine's capacity into output.
- 6. Mark it with gauge, date and settings. When a flange problem appears three weeks later, the sample tells you whether something drifted or the material changed.
- 7. Both heads are driven from one shaft. Any slip shows as a mismatch between the two flange heights. Mark the coupling and check the mark lines up after a month.
- 8. Daily totals hide the set-up losses. An hourly count shows exactly where the time goes.
Dual Head Faults: Symptom, Cause, Fix
Dual-head faults are almost always symmetry problems — the two heads disagreeing. That is good news, because symmetry is measurable and adjustable without parts.
| Symptom | Most likely cause | What to do |
|---|---|---|
One flange consistently different from the other Head gap settings differ | One head was adjusted and the other was not, or one drifted after a gauge change The most common dual-head complaint | Form a test panel and measure both flanges. Adjust the head that is out, in 0.02 mm steps Never adjust both at once — you will lose the reference |
Panel skews as it passes through Heads not aligned to the fence | One head is pulling harder than the other, rotating the panel slightly Shows as a panel that leaves the machine at an angle | Check the fence is square to both heads with a 1 m square Re-check after any heavy gauge run, which can shift alignment |
Throughput lower than the single-head machine it replaced Infeed cannot keep up | The machine is waiting for panels, not the other way round Common when one operator feeds a dual head alone | Add a second operator or a powered infeed table before spending anything else Time the cycle: if the heads are idle more than they are forming, this is the cause |
Flange quality fine at the start of a batch, poor at the end Material variation within the coil | Gauge tolerance within a coil is wider than most shops assume More visible on a dual head because both edges are formed at once | Measure the actual thickness at the start and end of the batch If it varies more than 0.05 mm, speak to the supplier before blaming the machine |
Both heads noisy under load Drive coupling or gearbox shared by both heads | A single drive serves both heads, so a fault affects both simultaneously Distinguishes a drive fault from a head fault | Stop and check gearbox oil and coupling alignment Do not run through the noise — a dual head transmits high torque |
Machine trips on start-up only Both heads starting under load | Inrush from two heads at once, on a supply sized for one Often appears only on the first start of the day | Start with the heads disengaged, then engage If it persists, the supply or the starter needs upsizing |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 300-800 duct sections per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your Dual Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
