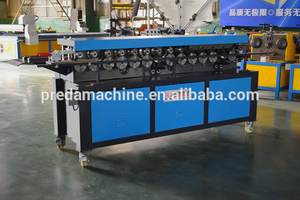

TDF Flange Former T-16
Last updated: October 12, 2026
Heavy-duty TDF flange former T-16 for thicker gauge material and larger duct applications.
Technical Specifications
What is a TDF Flange Former T-16?
A flange forming machine is sheet metal equipment that produces TDF (Transverse Duct Flange) or TDC (Transverse Duct Connector) flanges on the edges of rectangular duct panels. These flanges allow duct sections to be bolted together with gaskets for air-tight connections. Flange formers are typically used in conjunction with auto duct lines or as standalone machines for custom ductwork fabrication.
Key Features
- Handles heavier gauge steel
- Reinforced frame
- Precision ground rollers
- Industrial-grade components
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The TDF Flange Former T-16 is engineered to eliminate these inefficiencies — automating TDF flange former T-16 while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your heavy duty TDF workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The TDF Flange Former T-16 operates on a proven principle: TDF flange former T-16 should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.
Flange Roll Forming

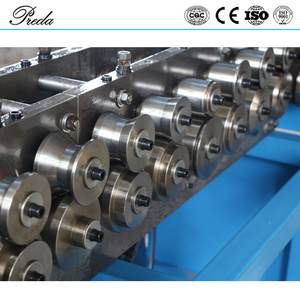

Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.
Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Where the T-16 Sits Between the T-12 and a Duplex Head
The T-16 exists for one reason: the T-12 runs out of capacity on wide panels and heavy gauge. Same operating principle, but a deeper roll set, a higher-torque head and a frame that does not flex when you push 18 ga through it. If your work is standard commercial duct at 24–22 ga, the T-12 is the better buy; the T-16 earns its premium only when you regularly see 18 ga or panels past 1.2 m.
| Model | Frame and drive | Gauge it handles comfortably | Buy it when |
|---|---|---|---|
TDF Flange Former T-16 This machine — heavy frame, high-torque head | 0.5–1.5 mm (24–16 ga) Deeper roll set than the T-12 | 1.6 m panel width at 18 ga Comfortable margin on heavy gauge | 18 ga is routine rather than occasional Or your ducts exceed 1.2 m on the flanged side |
Lighter frame, standard head | 0.5–1.2 mm (24–18 ga) Lower torque, lower cost | Standard commercial sizes at 24–20 ga The majority of HVAC work | Your gauge mix is mostly 24 and 22 ga The T-16 would be idle capacity you paid for |
Two heads, both edges in one pass | 0.5–1.5 mm Same gauge range as the T-16 | Wide panels at high volume No turning the panel | Throughput, not gauge, is your constraint A T-16 with two operators can still out-produce one duplex head |
TDC profile with connector | 0.5–1.5 mm Different profile, not a heavier TDF | High-static industrial systems Specified by the engineer | The job specification names TDC A T-16 cannot form a TDC profile |
Round duct flanges, not rectangular | 0.4–1.2 mm Spiral and round duct work | Round duct flanging and ring forming Different product entirely | Your work is round rather than rectangular Consider both if you fabricate both |
Setting Up the T-16 for Heavy Gauge Work
Heavy gauge is where a flange former either earns its keep or produces a pile of scrap. The T-16 has the torque for 18 ga, but only if the set-up accounts for the greater springback and the higher forming load.
- 1. The T-16 head draws more current than the T-12. A supply sized for a T-12 will trip under 18 ga load. Check voltage under load, not at the socket.
- 2. A heavy frame settles into the floor. Re-check with a precision level after the first week of production and shim if needed.
- 3. At 18 ga, springback is roughly three times that of 24 ga. Start 0.05 mm under material thickness and open in 0.02 mm steps until the flange holds.
- 4. Run 18 ga at the lower end of the speed range. The extra time lets the material flow rather than tear, and it keeps motor current inside the duty cycle.
- 5. Heavy gauge carries more mill scale and harder coating. A scored roll will mark every panel that follows.
- 6. Do not interpolate from the 22 ga settings. Write the gap, guide and speed for 18 ga separately and keep it on the machine.
- 7. A flange can measure correct and still not accept the corner. Dry-fit corners on the first and last panel of every batch.
- 8. Continuous 18 ga work is the duty the T-16 is built for, but a blocked cooling fan will still bring it down. Keep the fan grille clear.
T-16 Faults: Symptom, Cause, Fix
The T-16 failure profile differs from the T-12 because it is normally worked closer to its limit. Most calls involve load, heat or springback rather than geometry.
| Symptom | Most likely cause | What to do |
|---|---|---|
Motor trips on 18 ga but not on 22 ga Supply voltage drop under load, or speed set too high | Heavy gauge at high speed pushes current past the breaker rating Often the supply, not the machine | Measure voltage at the machine while forming. If it drops more than 5%, the supply is undersized Reduce speed and re-test before assuming a fault |
Flange height drifts during a long run Head warming up and expanding | Thermal growth changes the roll gap over the first hour of continuous heavy work Stops drifting once the head reaches steady temperature | Run 20 scrap panels to bring the head to temperature, then set the gap Re-check after the first two hours on a new job |
Cracking on the outer flange bend Bend radius too tight for the gauge | 18 ga needs a slightly larger radius than 22 ga; the same roll set is being asked to do both Shows as hairline cracks on the outside of the bend | Confirm the roll set matches the gauge range you are running Send us a photo of the cracked flange before changing anything |
Panel walks out of the fence on wide stock Feed support insufficient for the panel width | A 1.6 m panel needs support along its length, not just at the entry More likely the sheet stand than the machine | Add a roller stand at the infeed and check the fence is square One operator should guide, not carry, the panel |
Unusual noise from the head under load Gearbox oil low or the wrong grade | Heavy-gauge duty raises gearbox temperature and thins the oil A whine that rises with load is usually lubrication, not bearings | Check the level with the machine stopped and level, and top up with the specified grade If the noise persists after that, stop and call us |
Flange profile correct but corners still will not fit Corner die worn or wrong profile | The T-16 forms the flange; the corner is a separate tool and wears faster Easy to misdiagnose as a forming problem | Inspect the corner die before touching the flange settings See the TDF corner making machine for die replacement intervals |
