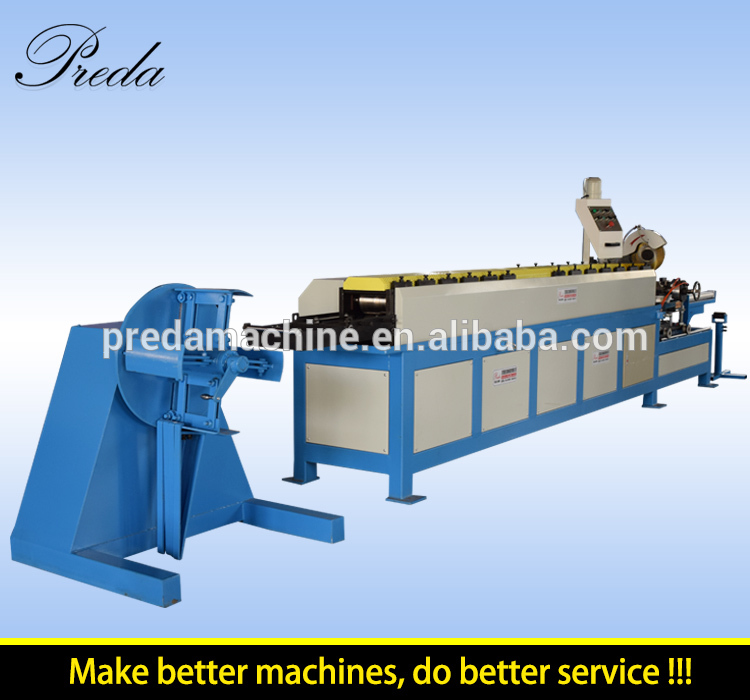

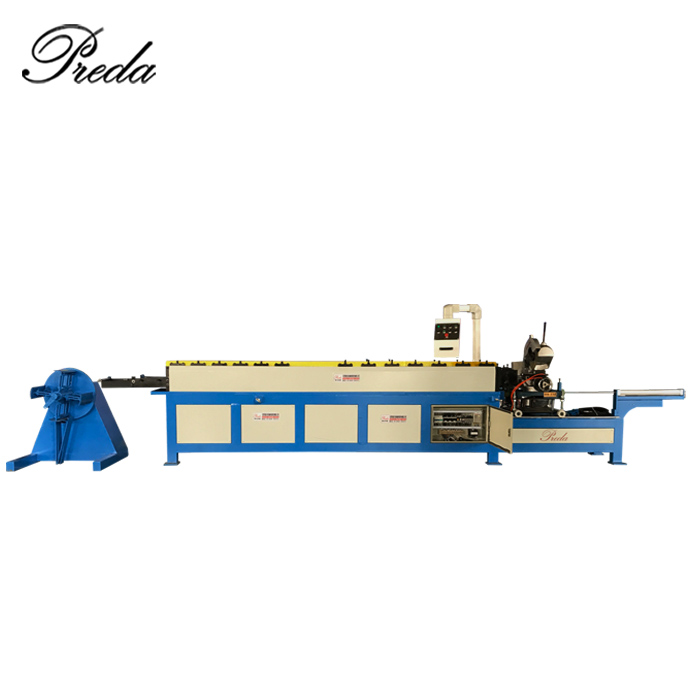

TDC Flange Former Machine
Last updated: October 12, 2026

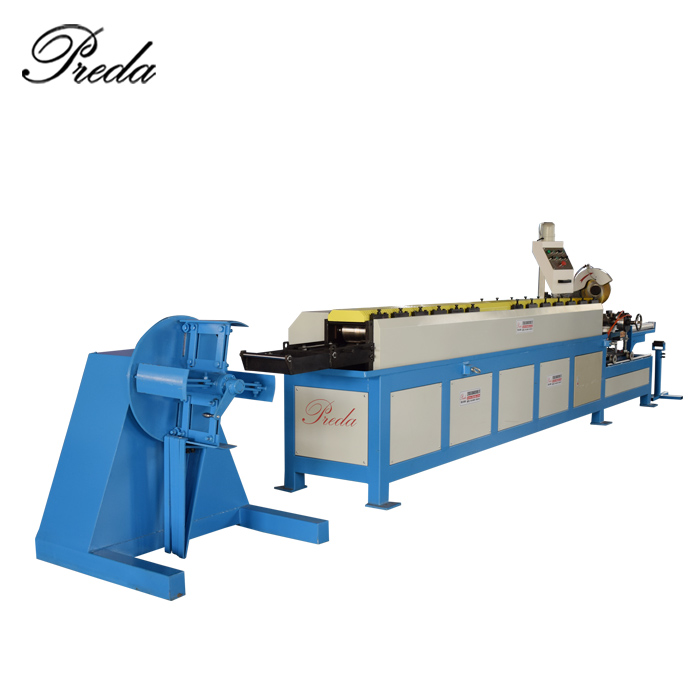

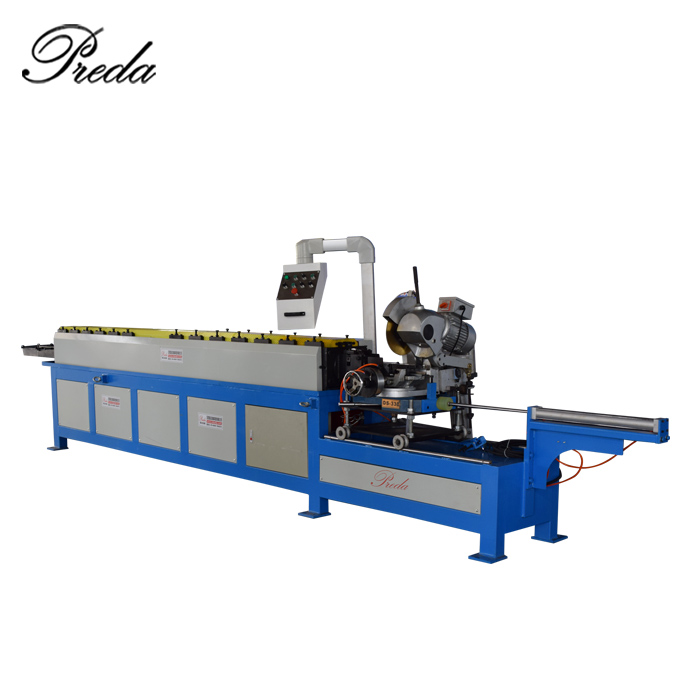

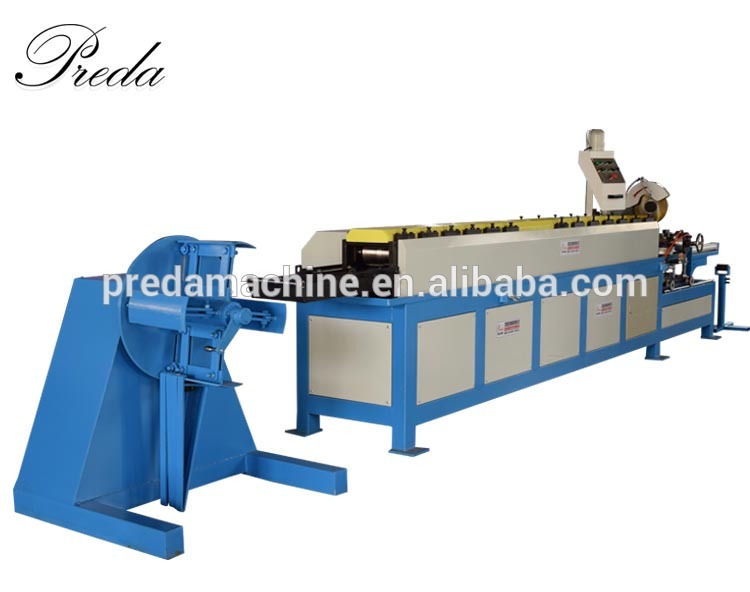

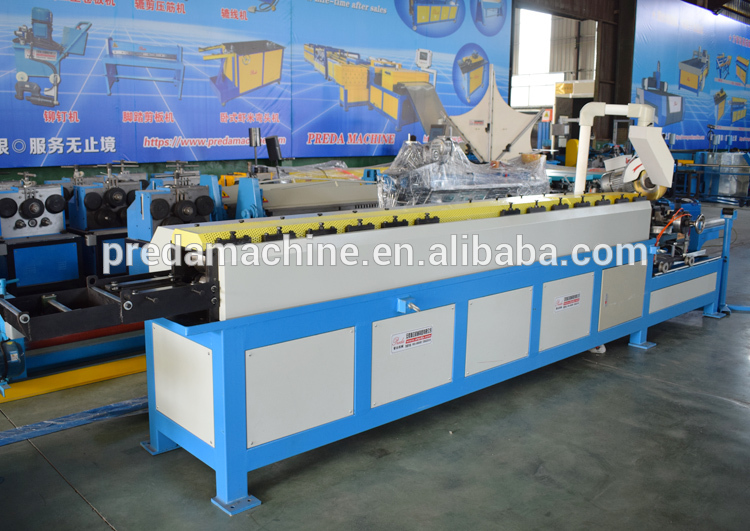

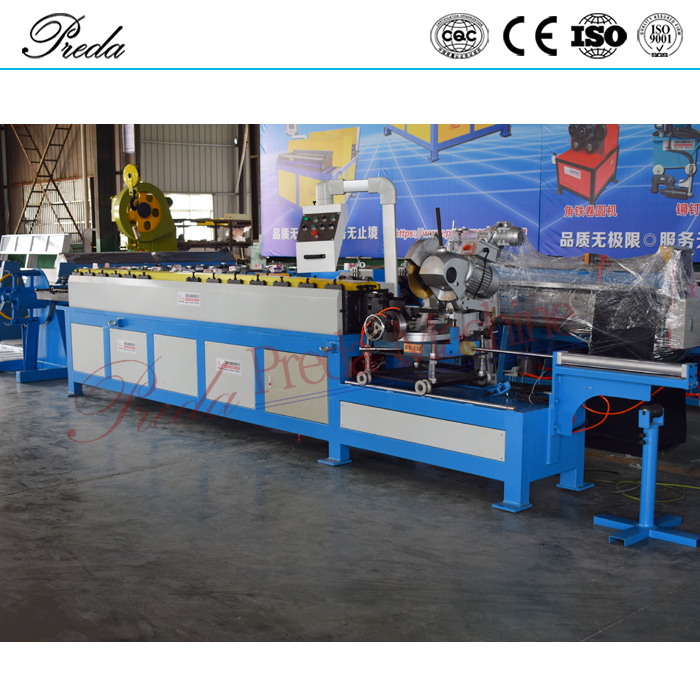

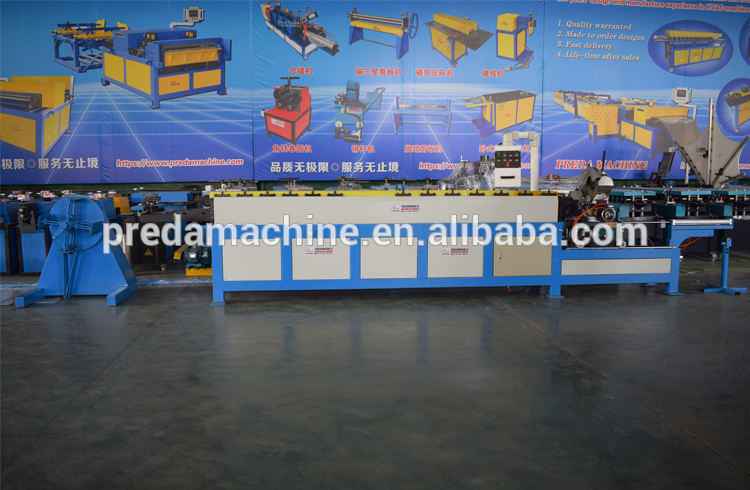

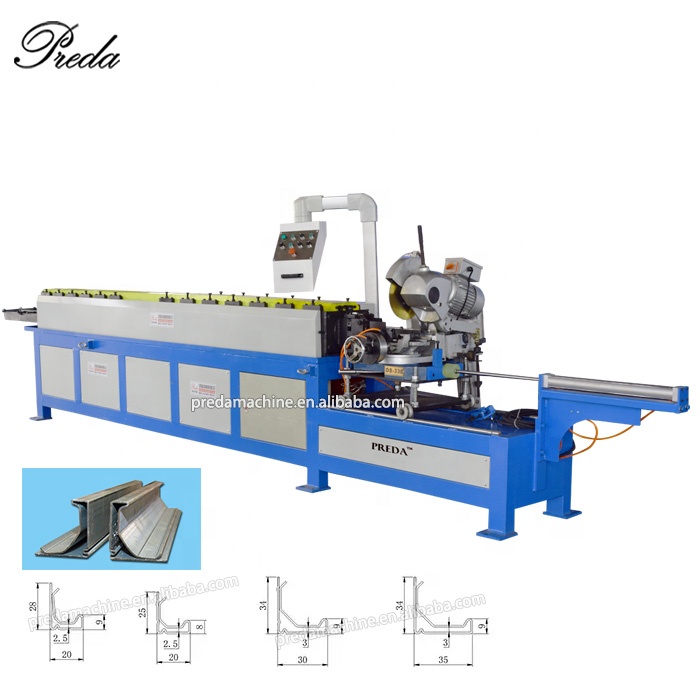

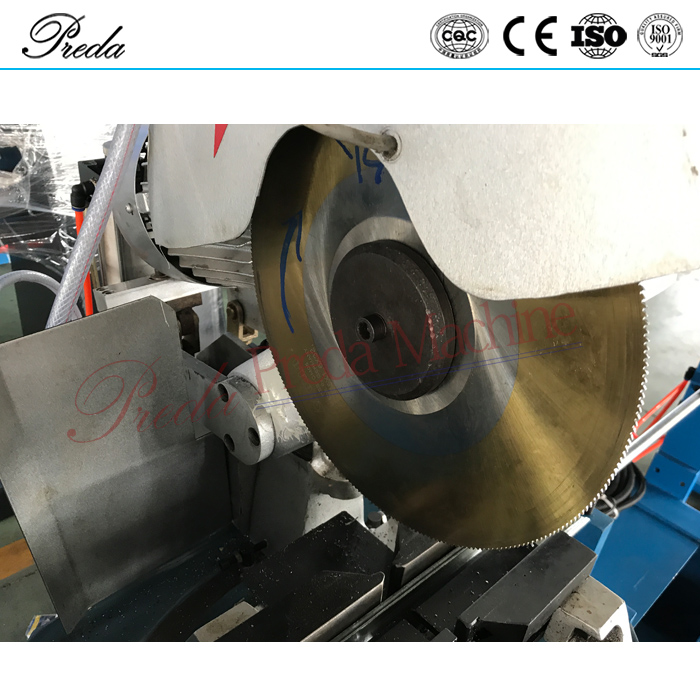

TDC (Transverse Duct Connector) flange forming machine for heavy-duty rectangular duct connections.
Technical Specifications
What is a TDC Flange Former Machine?
A flange forming machine is sheet metal equipment that produces TDF (Transverse Duct Flange) or TDC (Transverse Duct Connector) flanges on the edges of rectangular duct panels. These flanges allow duct sections to be bolted together with gaskets for air-tight connections. Flange formers are typically used in conjunction with auto duct lines or as standalone machines for custom ductwork fabrication.
Key Features
- TDC profile for stronger connections
- Compatible with TDC hardware
- Heavy-duty construction
- Low maintenance design
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The TDC Flange Former Machine is engineered to eliminate these inefficiencies — automating TDC flange former while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your transverse duct connector workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.

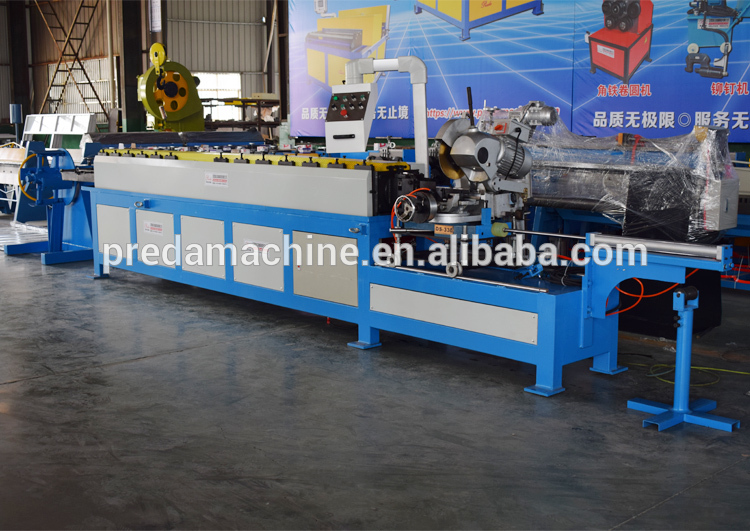

How It Transforms Your Production Line
The TDC Flange Former Machine operates on a proven principle: TDC flange former should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:

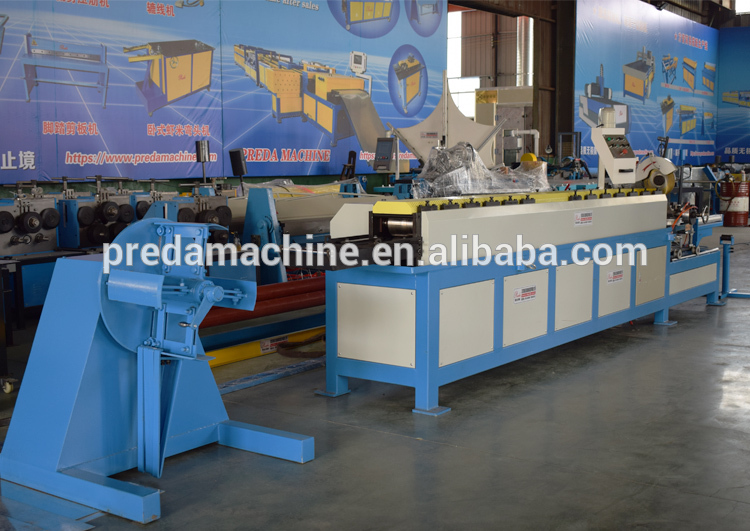

Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.

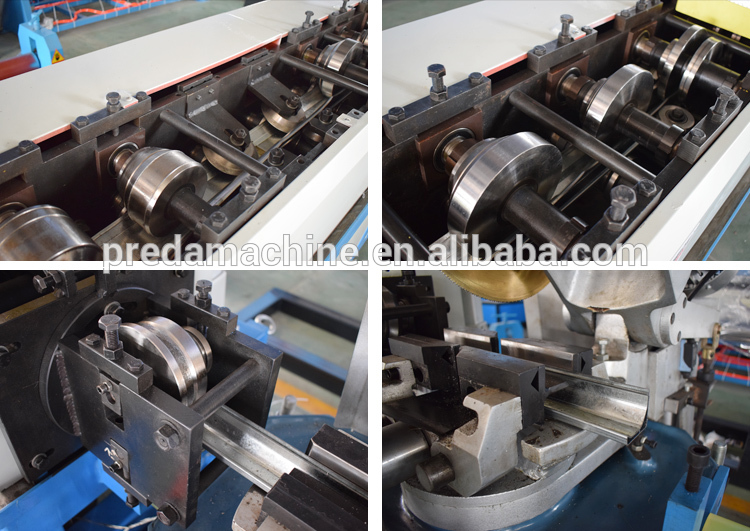

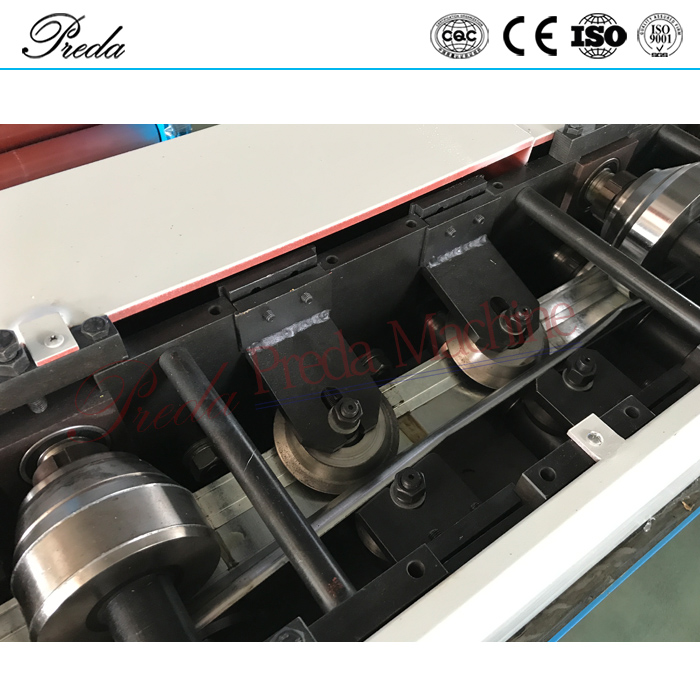

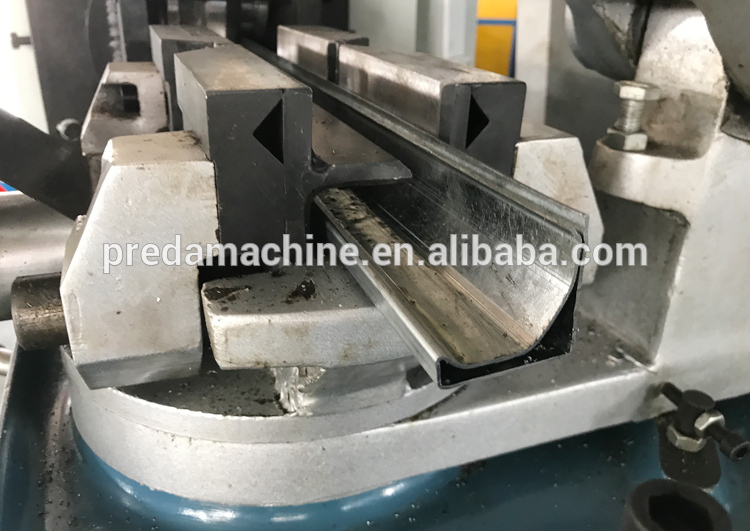

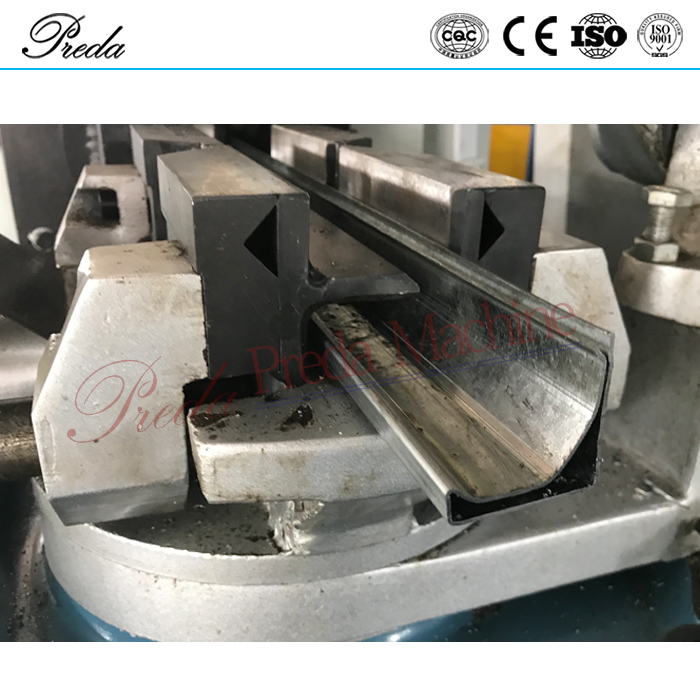

Flange Roll Forming
Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.

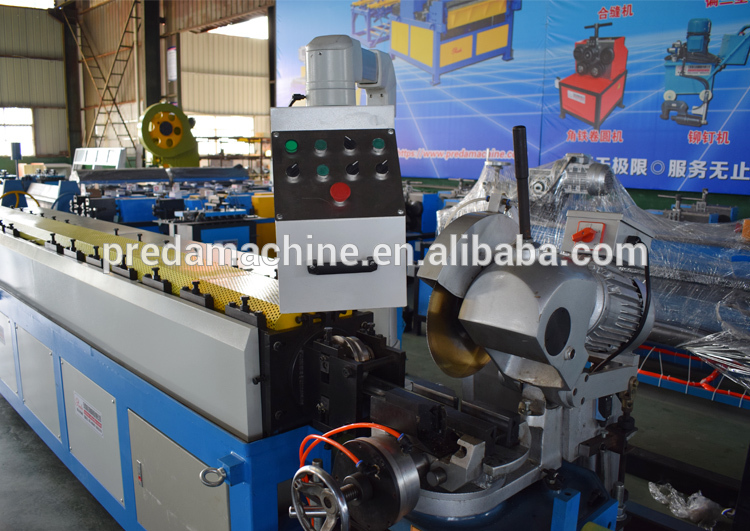

Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|

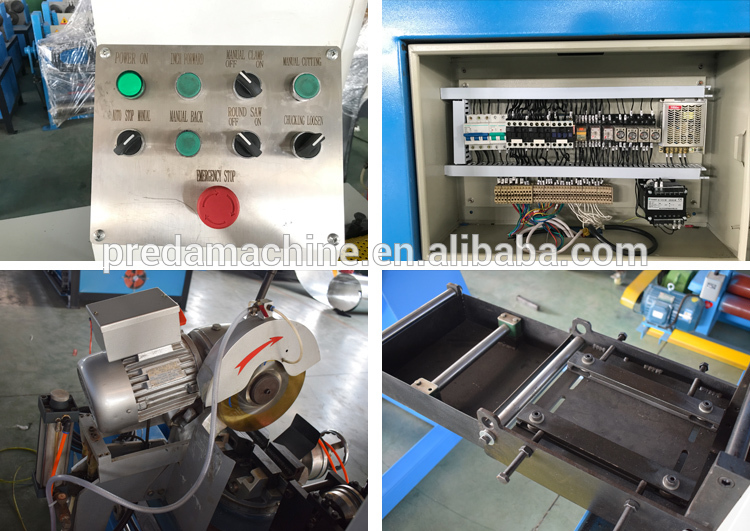

| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
TDC vs TDF: Choosing the Right Profile Before You Buy
This is the most common wrong purchase in the flange category. TDF and TDC look similar in a photograph and are not interchangeable in the field. TDC uses a separate connector piece and is specified for higher static pressures and larger ducts. If your drawings say TDF, a TDC former will produce flanges that will not accept your corners or your gaskets.
| System | Profile | Where it is specified | What to check before ordering |
|---|---|---|---|
TDC Flange Former This machine — forms the TDC profile | TDC profile, accepts a separate connector Heavier section than TDF | High-static systems above 4 in. w.g., industrial ventilation, large ducts Also common in the Middle East and on industrial specs | Confirm the profile on your drawings matches the roll set Send us a drawing or a sample of the connector you use |
The standard commercial profile | TDF profile, integral flange No separate connector | Standard commercial HVAC up to 4 in. w.g. The majority of ductwork | Your specification says TDF and ducts are under 1.2 m Cheaper and faster to set up than TDC |
TDF at heavier gauge and width | TDF profile Heavier frame | Large commercial ducts at 18 ga Where TDF is specified but heavy | Gauge and width, not pressure, are your constraint Still TDF — not a substitute for TDC |
TDF at volume | TDF profile, both edges at once Throughput option | High-volume TDF production Commercial work | Volume is the constraint and the profile is TDF Not for TDC work |
The corner die that pairs with this machine | Corner insert for TDC Completes the TDC system | Every TDC duct needs corners Consumable tooling | Order it with the machine A TDC former without the matching corner die cannot finish a duct |
Running a TDC Former: What Differs From TDF
TDC work has one extra part and one extra tolerance to hold. Set the machine up for the connector, not just the flange, and most TDC problems never appear.
- 1. TDC connectors vary between suppliers by a millimetre or two. A flange that fits one connector will not fit another. Get the connector before you set the rolls.
- 2. Form a short length, insert the connector, and check it seats without force. Adjust from there rather than from a thickness measurement alone.
- 3. The TDC section is deeper and moves more material. Running at TDF speeds produces an incomplete profile even though the machine is capable of the speed.
- 4. TDC is normally paired with 20–18 ga. Confirm your coil stock matches what the roll set was specified for.
- 5. The corner is where profile error shows. If the connector seats at mid-panel but not at the corner, your notching depth is wrong rather than your forming.
- 6. If you buy connectors from more than one source, keep a separate set-up card for each. Mixing them on one setting produces intermittent fit problems that are very hard to trace.
- 7. The two profiles look close enough that a mixed batch can reach site before anyone notices. Mark the machine and the stacking area.
- 8. A short flanged section with the connector fitted, hung where operators can see it, settles fit arguments in seconds.
TDC Former Faults: Symptom, Cause, Fix
Because TDC adds a connector, faults split into two groups — the formed profile and the fit. Diagnose which one you have before adjusting anything.
| Symptom | Most likely cause | What to do |
|---|---|---|
Connector will not enter the flange Profile formed short or the connector is a different pattern | The profile depth is a millimetre under, or the connector came from another supplier Nearly always one of these two | Test a connector from the same batch as the job before adjusting the rolls If it fits another flange, the material or connector changed |
Connector fits but pulls out under load Profile formed too open | Springback left the grip section wider than specified More common on 18 ga and on stainless | Tighten the roll gap in 0.02 mm steps and re-test with an actual pull Do not judge by eye — pull-test the assembly |
Profile incomplete at the ends of the panel Speed too high for the section depth | The deeper TDC section needs more time in the rolls than TDF Shows only at the lead-in and lead-out | Reduce speed and check the ends again If it persists at low speed, the roll set may be mismatched to the material |
Flange twists along its length Uneven feed support | TDC stock is heavier, so sag between supports is greater Worse on wide panels | Add infeed support and re-check with a straight edge Confirm the frame is still level — heavy stock hastens settling |
Corner assembly gaps Notching depth or corner die, not the former | The former is producing a correct profile; the corner preparation is not Easy to misdiagnose | Check the corner notching depth before touching the former See the TDC corner mold PD-02 page for die specification |
Excessively high motor load Material thicker than the roll set specification | TDC is often run at 18 ga; 16 ga through a 1.5 mm roll set will overload the head A specification error rather than a machine fault | Verify the actual thickness with a micrometer before continuing Running over specification will damage the rolls |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 300-800 duct sections per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your TDC Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
WhatsApp / WeChat: +86-18355321923 | Email: jason@predamachine.com
