TDC Corner Mold PD-02
Last updated: October 12, 2026
TDC corner mold for producing TDC flange corners, precision engineering for reliable duct flange fabrication.
Technical Specifications
What is a TDC Corner Mold PD-02?
A flange forming machine is sheet metal equipment that produces TDF (Transverse Duct Flange) or TDC (Transverse Duct Connector) flanges on the edges of rectangular duct panels. These flanges allow duct sections to be bolted together with gaskets for air-tight connections. Flange formers are typically used in conjunction with auto duct lines or as standalone machines for custom ductwork fabrication.
Key Features
- TDC profile corner production
- Hardened alloy steel construction
- Precise angle and dimension
- Compatible with standard presses
- Durable and low maintenance
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The TDC Corner Mold PD-02 is engineered to eliminate these inefficiencies — automating TDC corner mold while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your PD-02 TDC corner workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The TDC Corner Mold PD-02 operates on a proven principle: TDC corner mold should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.
Flange Roll Forming
Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.
Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:

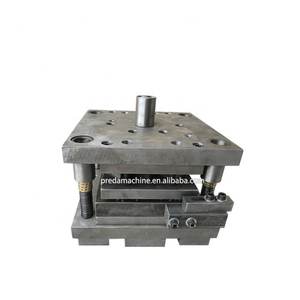

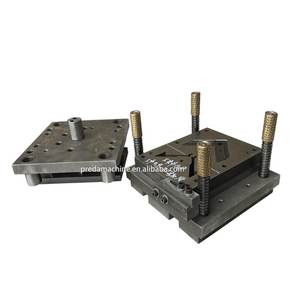

TDC Corner Mold PD-02: Matching the Die to the System

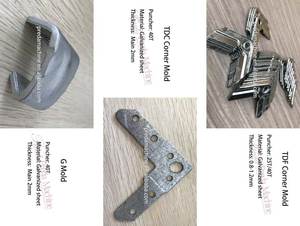

The PD-02 is the corner die for the TDC system. It is the single most commonly mis-ordered item in the flange category, because TDC and TDF corners look almost identical on a shelf and are not interchangeable in service. Confirm your flange profile before ordering.
| Die | System | Use | Note |
|---|---|---|---|
TDC Corner Mold PD-02 This item — TDC corner die | TDC The heavier transverse duct connector system | Fixed corner stations and presses Production tooling | Only for TDC work Will not produce a correct TDF corner even though it looks similar |
The TDF equivalent | TDF Standard commercial flange | TDF corner stations The more common die | Your work is TDF rather than TDC Order by system name, never by appearance |
Clamp-mounted TDC die | TDC Portable TDC corner work | Bench or site use Low volume | Site work or occasional TDC corners Same system, different mounting |
Forms the TDC flange | TDC Upstream of the corner | Production machine Not a die | You need the flange formed as well as the corners The PD-02 completes what the former starts |
The station this family of dies fits | TDF Dedicated corner station | Accepts the matching die Confirm the pattern | If you are buying the station, order the right die with it And a spare — dies are the fastest-wearing item in the shop |
Extending TDC Die Life in a Production Shop
Corner dies are consumables. The difference between a die that lasts three months and one that lasts a year is almost entirely cleaning, alignment and not running material the die was not cut for.
- 1. TDC dies are cut for a specific flange height and connector pattern. A die for the wrong height produces corners that neither fit nor hold.

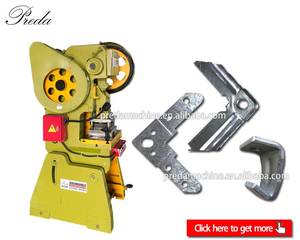

- 2. The PD-02 fits standard TDC stations, but presses vary. Measure before assuming a fit.
- 3. Setting depth before height is the usual cause of corners that fit but do not hold. Height is the datum; depth follows from it.
- 4. Zinc build-up changes crimp geometry slowly, so quality drifts rather than failing suddenly. A brass brush at shift end prevents it.
- 5. Lubricant on the forming faces attracts zinc dust and accelerates wear.
- 6. Look for rounding on the crimp edges. Once the edge is rounded, the corner stops holding even though the die looks serviceable.
- 7. TDC is commonly paired with 18 ga. Pushing 16 ga through a die rated for 1.5 mm will chip it. Verify thickness with a micrometer when the material changes.
- 8. Tooling lead time is longer than the remaining life of a die that is already showing wear.
TDC Die Faults: Symptom, Cause, Fix
Die faults appear as a slow drift in corner quality rather than a sudden failure. Catching the drift is the whole job.
| Symptom | Most likely cause | What to do |
|---|---|---|
Corner quality declines gradually over weeks Wear on the crimp edges | Gradual rounding, so the crimp gets shallower over time Drift rather than sudden failure is the signature of wear | Compare the die edge with a new one under a bright light Replace on rounding — do not compensate by increasing depth |
Corner will not enter the flange at all Wrong die for the flange height or system | A TDF die on TDC work, or the wrong height Forcing it damages the die and the flange | Confirm the system and flange height before applying any force Mark every die with system and height |
Zinc build-up in the cavity No cleaning routine | Galvanising transfers and accumulates, changing geometry slowly Often missed because the change is gradual | Clean with a brass brush at the end of every shift Never use steel on the die surface |
Die chipped or cracked Material over specification or off-axis load | TDC is often run at 18 ga; thicker stock chips the die Or the die was mounted out of square | Replace the die and check the mounting alignment and material thickness A cracked die is not repairable |
Crimp depth inconsistent across a batch Press or station wear, not the die | Lost motion in the ram shows as depth variation Blaming the die is the usual mistake | Check the ram for play before replacing the die Measure five consecutive corners |
Corner holds but the coating is cracked Depth too great | Over-crimping fractures the galvanising, which is where corrosion starts A structurally sound corner that will fail early in service | Reduce depth to the minimum that passes a pull test without coating damage Record the setting — the window is narrow |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 300-800 duct sections per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your TDC Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
