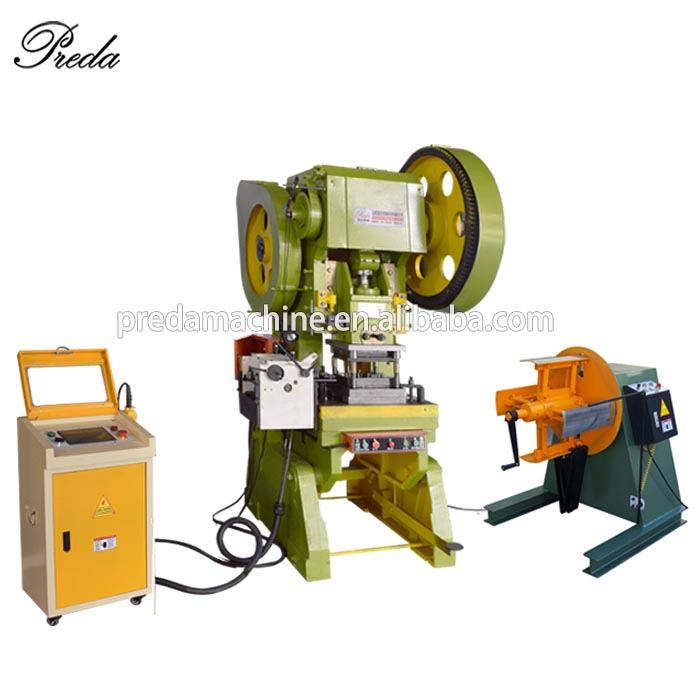

TDF Corner Making Machine
Last updated: October 12, 2026

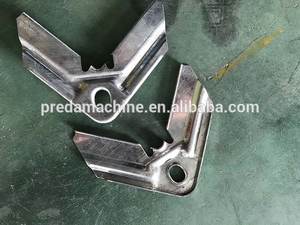

Hydraulic TDF corner making machine for producing precision corners from galvanized or stainless steel.
Technical Specifications
What is a TDF Corner Making Machine?
A flange forming machine is sheet metal equipment that produces TDF (Transverse Duct Flange) or TDC (Transverse Duct Connector) flanges on the edges of rectangular duct panels. These flanges allow duct sections to be bolted together with gaskets for air-tight connections. Flange formers are typically used in conjunction with auto duct lines or as standalone machines for custom ductwork fabrication.
Key Features
- Fast corner production
- Precise 90-degree angles
- Quick die change
- Foot pedal operation
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The TDF Corner Making Machine is engineered to eliminate these inefficiencies — automating TDF corner making machine while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your hydraulic corner maker workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The TDF Corner Making Machine operates on a proven principle: TDF corner making machine should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.
Flange Roll Forming
Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.
Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|

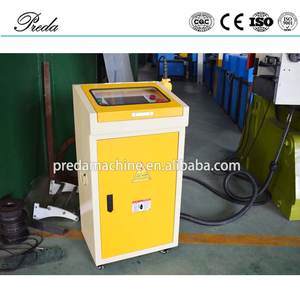

| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Which Corner Solution Fits Your Volume
Every TDF duct needs four corners, and there are four ways to make them. The right choice depends almost entirely on how many corners you make a day — the tooling cost is trivial next to the labour difference.
| Method | Corners per hour | Capital | Choose it when |
|---|---|---|---|
TDF Corner Making Machine This machine — dedicated corner station | 300–600 Operator-paced | Moderate One machine can serve several flange formers | You flange on more than one line and want one shared corner station Also the right choice for mixed panel sizes |
Air-powered crimping | 400–700 Faster per corner | Lower, but needs a compressor Fits on a bench | You have compressed air and want corners made at the bench Good for medium volume with limited floor space |
Hydraulic, portable | 300–500 Higher force per stroke | Moderate Can be taken to the panel stack | You work on heavier gauge or need to crimp at the assembly point Portability is the reason to choose this |
Corners prepared inline | Matched to the flange pass No separate handling | Highest Built into the former | Handling time to a corner bench is your bottleneck Only pays at sustained high volume |
The die set itself | Depends on the press Consumable tooling | Lowest Wears and is replaced | You already have a press and need the die Also the spare to keep on the shelf |
Setting Up a Corner Station That Does Not Bottleneck the Line
A corner station is usually sized wrongly in both directions — either it cannot keep up with the former, or it is expensive capacity sitting idle. Measure before you buy.
- 1. Four corners per duct means a 100-duct day is 400 corners. Size the station on corners, and the number will usually surprise you.
- 2. Corner dies are cut for a flange height. If you run two flange heights, you need two dies or an adjustable one — running one die on two heights produces corners that fit loosely on one of them.
- 3. Carrying panels is the hidden cost of a separate corner station. If the station is more than a few metres away, add a roller table.
- 4. A corner that looks crimped can still pull apart. Destructive-test one corner per batch in the first month.
- 5. Corner dies wear faster than any other tooling in a duct shop. One spare in the machine and one on the shelf prevents a shipment delay from stopping production.
- 6. Changing the die or the gauge setting between sizes costs more time than the crimp itself at low volume.
- 7. This is the number that tells you whether to add a station, buy a faster machine, or leave it alone.
- 8. Over-crimping fractures the galvanising at the corner, and that is where duct corrosion starts. If you see zinc cracking, reduce the crimp depth.
Corner Station Faults: Symptom, Cause, Fix
Corner defects are nearly always tooling or depth, and both are quick to confirm with a destructive pull test on a scrap corner.
| Symptom | Most likely cause | What to do |
|---|---|---|
Corner pulls apart under load Crimp depth insufficient | Looks correct but has not engaged enough material The single most common corner fault | Increase depth in small steps and destructive-test one corner each time Do not rely on appearance |
Galvanising cracks at the crimp Crimp depth excessive | Over-crimping fractures the coating, which is where corrosion begins The opposite of the fault above, and equally common | Reduce depth until the corner passes a pull test without coating damage Record the setting — there is a narrow window |
Corner fits one flange height and not another Die cut for the wrong flange height | Two flange heights being run on one die Appears intermittently, which makes it hard to trace | Identify and segregate the two flange heights and fit the matching die Mark the dies with the flange height |
Crimp position inconsistent Panel stop worn or the operator is gauging by eye | No positive stop, so position varies with operator and with fatigue Quality drops through the shift | Fit a positive stop and require every corner to be seated against it Check the stop weekly for wear |
Die wears unusually fast Material harder or thicker than specified | Stainless or heavy-gauge galvanised stock accelerates die wear sharply Often a purchasing change rather than a machine fault | Confirm the material specification with a micrometer and a hardness check Stock a second die set if you run stainless regularly |
Corner piece will not enter the flange at all Flange formed out of tolerance upstream | The corner station is fine — the flange from the former is the problem Easy to misdiagnose because the symptom appears at the corner bench | Measure the flange before adjusting anything on the corner machine See the TDF flange former pages for flange tolerance |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 300-800 duct sections per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
