Why Round Duct Gets Beads (and How a CNC Rotary Beading Machine Puts Them There)

What a Bead Actually Does

A 1.0 mm galvanized cylinder of 600 mm diameter, three metres long, flexes and vibrates the moment the fan starts. Left alone, it drums — and the drumming turns into noise complaints, fatigue at the seam, and a duct that won't hold its round shape against handling. Press a shallow circumferential groove into the wall — half a millimetre deep, a few millimetres wide — and the section stiffens dramatically for the cost of a few seconds of machine time and no added material.

The engineering reason is the same one behind corrugated cardboard. A corrugated profile resists buckling and bending far better than a plain wall of the same thickness. Beads spaced along the length of round duct give the thin wall the same advantage: you're not adding material, you're reshaping what's there so the wall stops flexing like a drum and holds its shape like a structure.

Beading vs Grooving: Same Machine, Two Jobs

Shops use the terms loosely, but there are two distinct operations and a good machine does both:

Both are formed with a rotary tool that presses into the spinning cylinder while it rotates — hence "rotary beading." The distinction matters when you spec the machine: you want tooling that switches between bead and groove profiles without a second machine purchase.

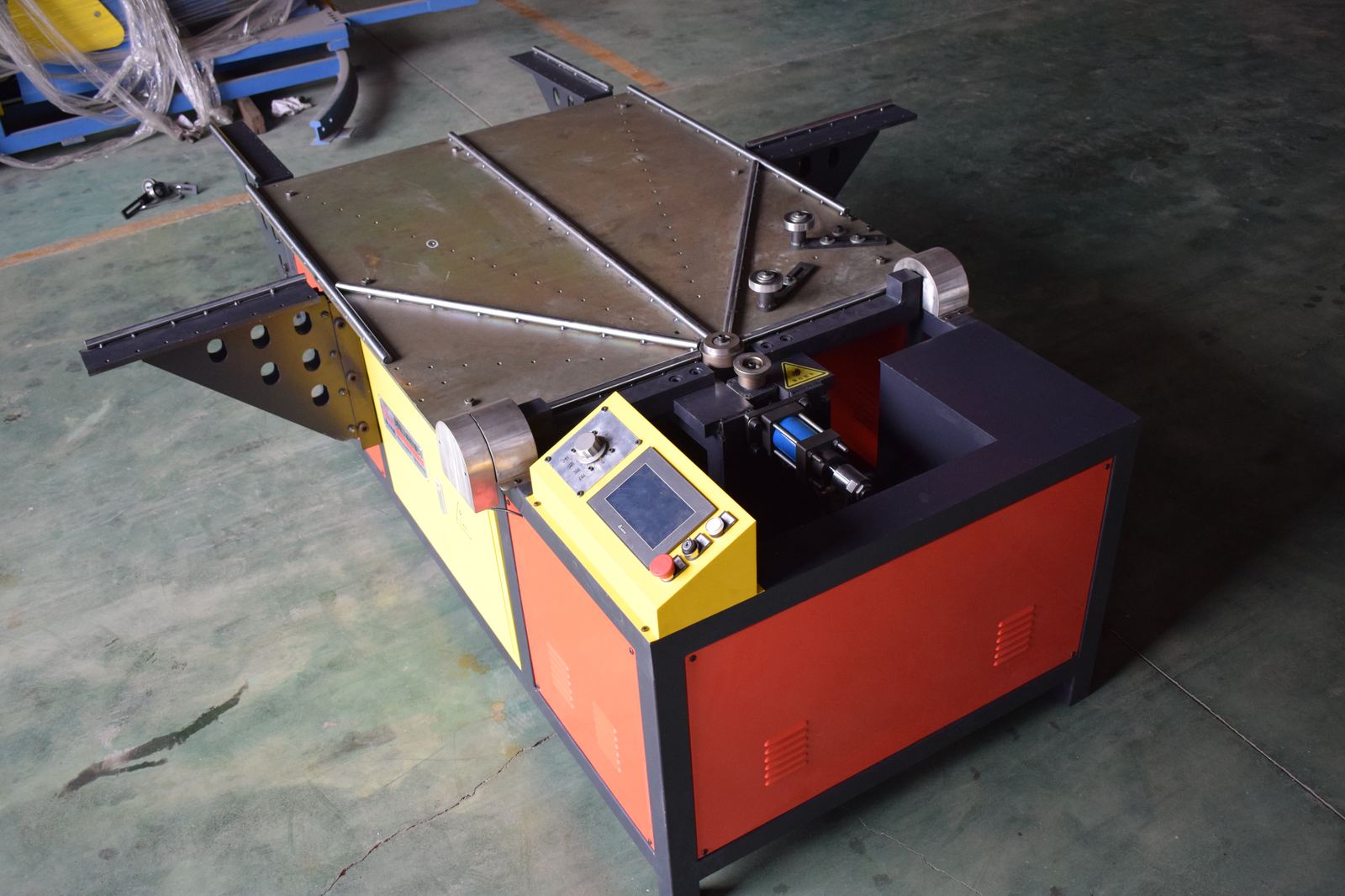

Why Rotary, and Why CNC

A press can stamp a bead, but only on a flat sheet before it's rolled. A rotary machine does it on the finished cylinder — which is exactly when you want the bead, because beads formed after rolling don't distort the blank sizing, and they register the true finished diameter. That's the argument for rotary beading machines in round duct production: they work at the end of the line, on the actual product.

What does CNC add on top of that? Three things that matter on real production schedules:

• Position control. Set the bead distance from the duct end in the program — every bead lands where the drawing says, not where the operator's eye says.
• Consistent depth. The tool force is controlled, so beads come out the same depth on every section of the run. Inconsistent depth is the classic cause of "this one holds, that one drums."

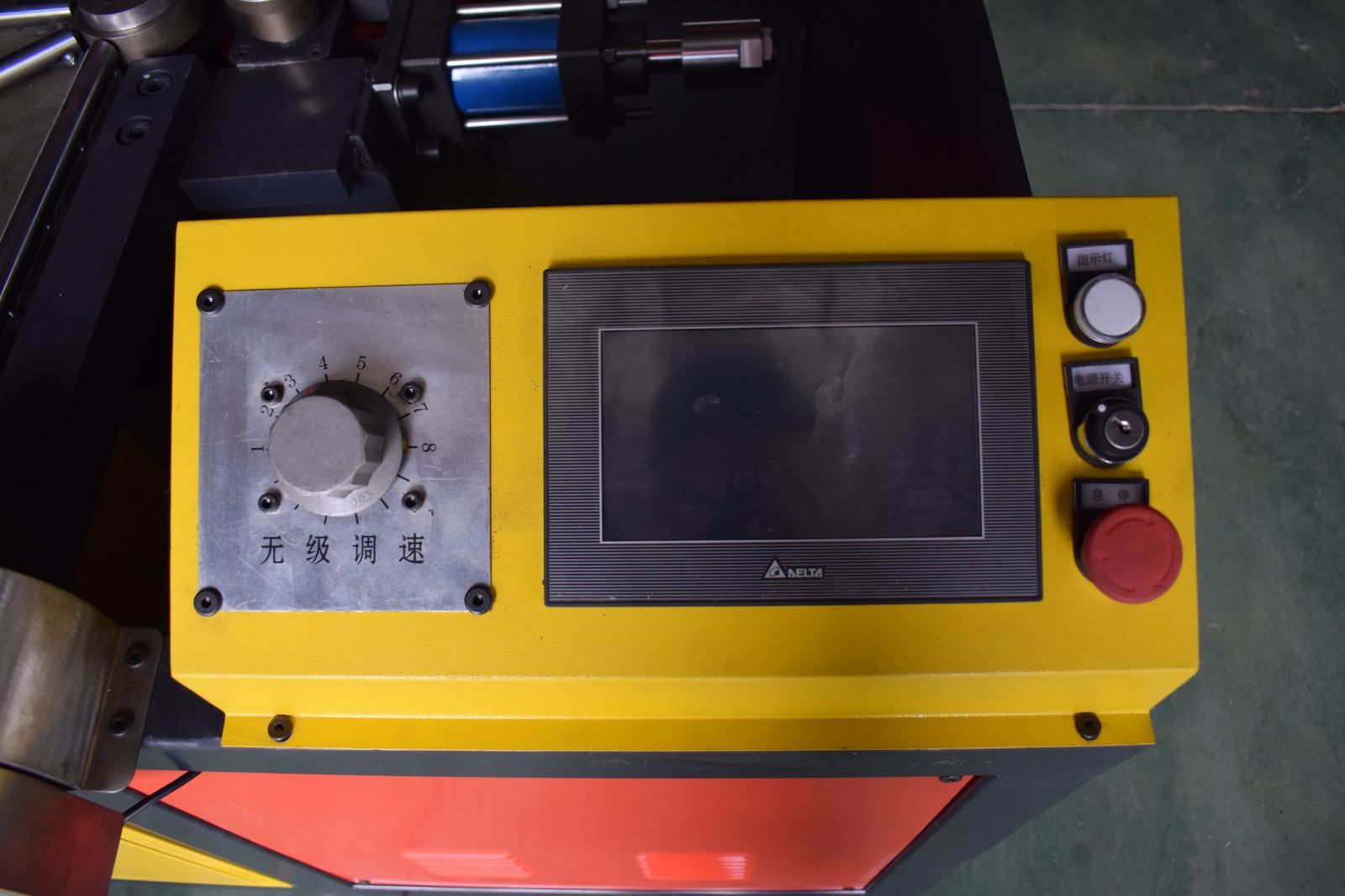

• Diameter changeover speed. The machine re-sets for the next duct diameter from a stored program instead of a tooling change dance. For shops running mixed sizes, this is where the time is.

The Spec Sheet

The numbers for the machine referenced throughout this guide:

Two specs to read carefully. 1600 mm max diameter means you can bead standard round duct up to that size; anything larger is spiral machine territory anyway, and spiral tube is produced with its own reinforcement logic. 0.4–1.2 mm spans light liner sheet through the heaviest standard round duct gauge — and 1.2 mm is exactly where beads matter most, because the thicker wall is the one most likely to be specified on long unsupported runs.

Where Beads Matter Most

Not every round duct section needs a bead. The engineers we work with apply them by rule of thumb, and it's a good rule to know:

Read it this way: beads earn their place wherever the duct is long or pressurized — the two conditions that make a thin cylinder flex. If you produce round duct for commercial HVAC, a beading machine isn't optional equipment. Skip the beads and the first long unsupported run tells you why.

Operating It: The Sequence That Gets Consistent Beads

Consistent bead depth is the whole game, and it comes from a repeatable sequence:

1. Seat the duct end against the register. The machine positions beads from the end reference. If the duct isn't seated, every bead drifts.
2. Set tool depth against a scrap ring. Same gauge, same diameter. Depth that works at 0.8 mm will over-form at 1.0 mm.
3. Run the rotation and advance together. The tool should engage and withdraw smoothly — a hard engage marks the wall and leaves a witness line.
4. Check bead depth with the gauge. Two or three spots around the circumference. Depth variation around the ring means the tool pressure or the duct roundness is off.
5. Program the job, not the piece. Once the depth and position are right, store them. The next section of the run is then identical by construction.

Cost and Payback

For a machine that runs seconds per piece, the economics are straightforward:

Put it in context: if your round duct runs average four beads per section, that's under a minute of machine time per piece. Compare that with the field consequences of unbeaded duct — noise callbacks, vibration complaints, seam fatigue — and the machine pays for itself on the first couple of projects where the client's mechanical room stays quiet. Clients don't invoice you for a quiet room; they just don't call back. That's where the payback actually lands.
