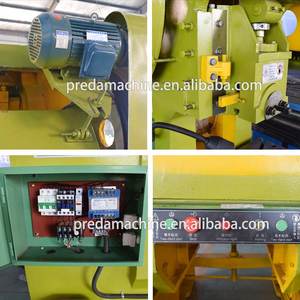

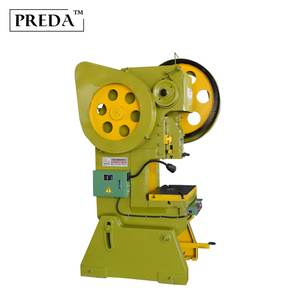

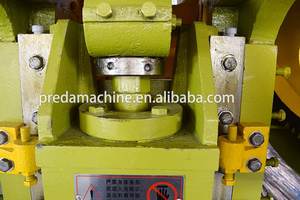

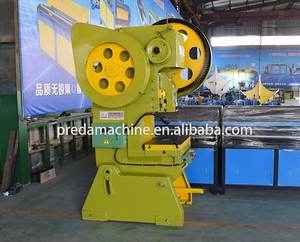

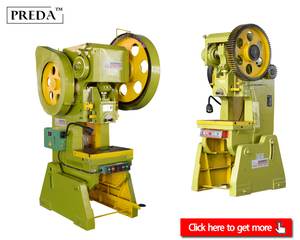

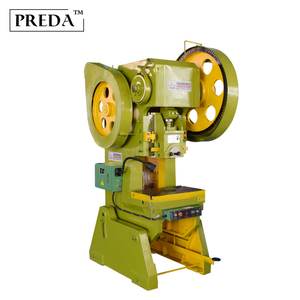

Tiltable Punching Machine J23-25T
Last updated: October 12, 2026
Tiltable punch press for TDF corner making and general sheet metal punching. 25-ton capacity with adjustable stroke and die space.
Technical Specifications
What is a Tiltable Punching Machine J23-25T?
This is a professional sheet metal and HVAC duct fabrication machine manufactured by Preda Machine. Designed for industrial duct production, this equipment delivers consistent quality, high efficiency, and reliable performance for HVAC contractors, duct fabrication shops, and sheet metal workshops worldwide. All machines are CE certified and backed by Preda Care after-sales service.
Key Features
- 25-ton punching force
- Adjustable stroke
- Compatible with TDF/TDC corner dies
- Foot pedal operation
- General sheet metal punching
- Reliable and durable
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The Tiltable Punching Machine J23-25T is engineered to eliminate these inefficiencies — automating tiltable punching machine J23-25T while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your 25 ton punch press workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The Tiltable Punching Machine J23-25T operates on a proven principle: tiltable punching machine J23-25T should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.
Flange Roll Forming
Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.
Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Tiltable Punching Machine J23-25T: Press vs Dedicated Corner Tooling
The J23-25T is a general-purpose 25-tonne tiltable press, not a duct machine. In a duct shop it earns its place doing the jobs dedicated tooling cannot: punching, notching, forming one-off brackets, and driving the corner molds used for TDF and TDC work. Buy it as a second machine, not as a replacement for a corner station.
| Option | What it does | Flexibility | Best fit |
|---|---|---|---|
Tiltable Punching Machine J23-25T This machine — 25 t general press | Punching, notching, light forming, driving dies One frame, many tools | High — accepts a wide range of tooling The tilt lets scrap and parts fall clear | A shop needing one machine for several occasional operations Also the right host for corner molds at low volume |
Dedicated corner crimping | One job, very fast Purpose-built | Low — corners only Fastest option at volume | Corners are a daily bottleneck Above about 400 corners a day this beats a press |
Dedicated corner station | Corners at production speed Purpose-built | Low — corners only Can serve several formers | Several flange formers feeding one corner station Better throughput than a press for the same job |
The die that fits this press | Turns the press into a corner station Consumable tooling | Fits standard patterns Wear item | You already have the press and want to make corners Confirm the shank pattern before ordering |
Joins duct sections without fasteners | Clinching rather than punching Specialised | Low A different joining method | You want to eliminate rivets and screws in assembly Complementary, not a substitute |
Running a General-Purpose Press Safely in a Duct Shop
A 25-tonne press is the most dangerous machine in most duct shops precisely because it is used for many different jobs. Standardise the set-up and most of the risk disappears.
- 1. A tiltable press that can walk is a serious hazard. Anchor it and check the anchors monthly.
- 2. The stroke that suits a punch is far too long for a corner die. Set and lock the limit for each job, and write it on the tooling.
- 3. Free-hand positioning on a press is how both scrap and injuries happen. A simple bolt-on stop costs almost nothing.
- 4. The tilt is for clearing scrap, not for adjusting while running. Confirm it is locked before every batch.
- 5. If a job permits a guard or a two-hand control, use it. A press is unforgiving of a moment's inattention.
- 6. Punching 2 mm with tooling rated for 1.5 mm damages both. Check with a micrometer when the material changes.
- 7. Because the press does many jobs, settings get lost. A log on the machine prevents the trial-and-error that produces scrap.
- 8. A press that double-strokes is extremely dangerous. If it ever double-strokes, stop using it immediately and call us.
Press Faults: Symptom, Cause, Fix
Because this machine does many jobs, the first question is always whether the fault is the press or the tooling. Test the press with no tooling before adjusting anything.
| Symptom | Most likely cause | What to do |
|---|---|---|
Part formed inconsistently No positive stop, or the stop has moved | Free-hand positioning, or a stop that has worked loose The most common cause of press scrap | Fit a positive stop and require every part to be seated against it Check the stop weekly for wear |
Tooling damaged Stroke too long, or material over specification | The ram is travelling further than the tool needs, or the stock is too thick Usually a set-up error rather than a tool defect | Set and lock the stroke limit for each tooling set-up and verify material thickness Write the setting on the tooling |
Press double-strokes Clutch or brake fault | Wear or maladjustment in the clutch and brake This is a safety-critical fault, not a quality issue | Stop using the machine immediately and call us Do not attempt to adjust the clutch while the press is energised |
Excessive noise on stroke Ram guides worn or lubrication missing | Lost motion in the ram shows as noise before it shows as scrap Early warning of wear | Lubricate to the schedule in the manual and check the ram for play Measure depth on five consecutive parts |
Scrap not clearing on a tilting press Tilt angle too shallow or the chute blocked | The tilt is there to clear scrap; if it is not doing that, something is obstructing it Often a simple blockage | Clear the chute and confirm the tilt is locked at the correct angle Never reach into the tooling area while the flywheel is turning |
Motor labours on every stroke Flywheel drive slipping or material too thick | Either the drive belt is slipping or the job exceeds the machine rating Distinguish by listening — a slipping belt squeals | Check belt tension first, then verify the material thickness against the rating Do not increase the flywheel speed to compensate |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 300-800 duct sections per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your Tiltable Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
