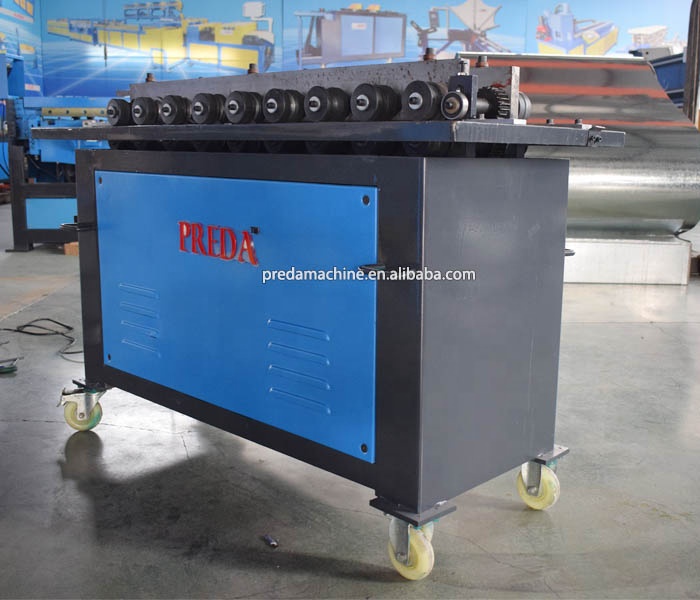

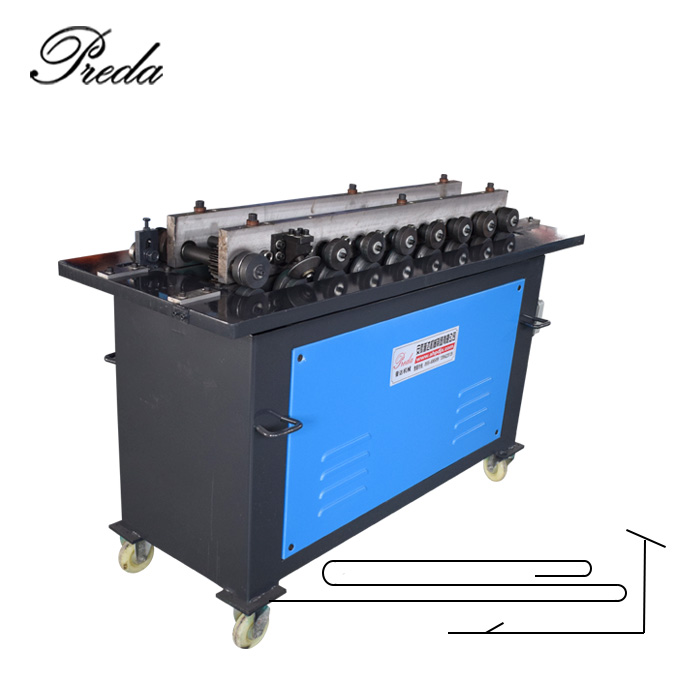

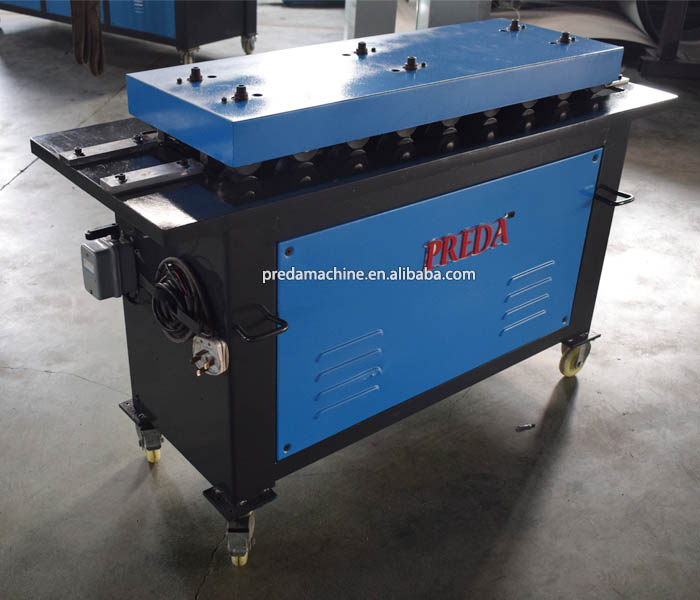

Snaplock Machine
Snaplock (pittsburgh snap) forming machine for quick-assembly duct connections without fasteners.
Technical Specifications
What is a Snaplock Machine?

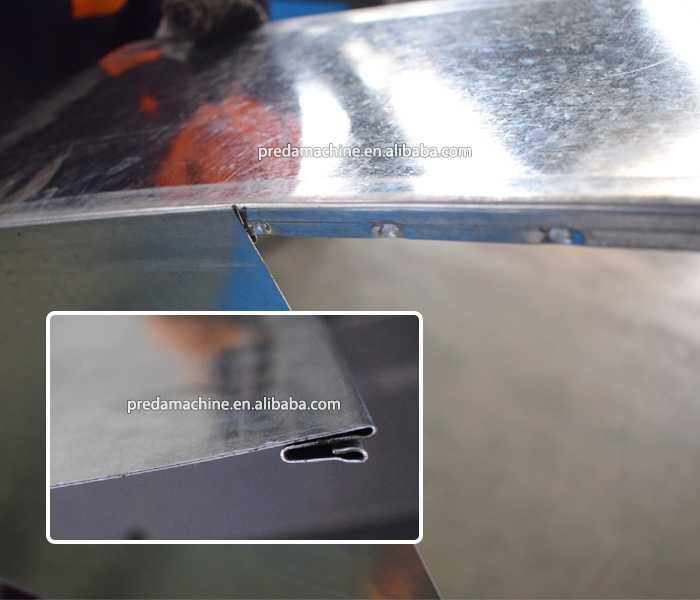

A Pittsburgh lockformer (also called a Pittsburgh lock machine or pittsburgh machine) is a sheet metal forming machine that creates the Pittsburgh lock seam — the most widely used connection method for rectangular HVAC ductwork. The machine rolls a female pocket on one edge of the sheet and a male flange on the mating edge, allowing ducts to be assembled by simply inserting and hammering the seam closed. Pittsburgh lockformers are essential equipment in any sheet metal duct fabrication shop.
Key Features
- One-pass snaplock forming
- Reduces assembly time
- Compatible with standard duct sizes
- Lightweight and portable
Trusted by HVAC Professionals Worldwide
See what our customers say about their Preda Snaplock Machine
How Much Does a Snaplock Machine Cost?
Pittsburgh lockformers range from $1,500 to $8,000 USD. Single-function entry models cost $1,500-$2,500. Multi-function machines (Pittsburgh + snap lock + standing seam) range from $3,000-$5,000. Heavy-duty industrial models with 1.5mm capacity cost $5,000-$8,000. Most machines process 0.5-1.2mm galvanized steel at 10-20 meters per minute.
Snaplock Machine — Key Specifications at a Glance
This lockformer doubled our seam production speed. The feed is smooth and consistent, no jamming even with 1.2mm galvanized steel. The quick-change feature lets us switch between duct sizes in under 5 minutes. Preda's team sent replacement gears free when we needed them after two years of heavy use.
We use this machine for galvanized, stainless, and aluminum — all with excellent results. The adjustment is intuitive and the lock profile is consistent across materials. Our technicians picked it up in a day. Preda's remote support helped us fine-tune the pressure for stainless steel without a site visit.
Still Losing Money to Weak Duct Seams and Air Leakage?
Every HVAC duct shop faces the same bottleneck: hand-forming Pittsburgh locks. When your team spends hours on inconsistent seam quality, your production capacity drops, labor costs rise, and deadlines slip. The Snaplock Machine is engineered to eliminate these inefficiencies — automating snaplock machine while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your pittsburgh snap forming workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The Snaplock Machine operates on a proven principle: snaplock machine should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Material Feeding
The sheet metal edge is fed into the forming rollers, guided by adjustable fences that ensure perfect alignment every time.
Multi-Station Roll Forming

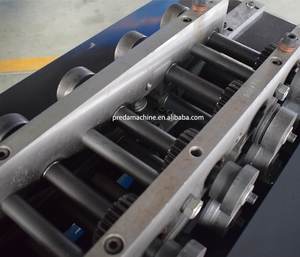

7 or more precision roller stations progressively bend the metal edge into the Pittsburgh lock profile — male on one side, female on the other.
Edge Hemming (Optional)
Additional roller sets can simultaneously form hems, drive cleats, or S-slips on the opposite edge in a single pass.
Discharge & Stacking
The formed panel exits the machine ready for assembly — simply hook the male and female locks together and close with a seam locker.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Hand-formed locks are inconsistent
Some seams too tight, some too loose, air leakage varies |
✓ Precision roller forming, identical every time
Consistent airtight seams, predictable quality |
|
✕ Slow manual forming
One worker can form 20-30 panels/hour by hand |
✓ Powered feed, 10-15m/min forming speed
One operator processes 100+ panels/hour |
|
✕ Multiple machines for different profiles
Need separate machines for Pittsburgh, S-slip, hem |
✓ Quick-change roller sets, multiple profiles on one machine
One machine does it all, save floor space and money |
|
✕ Sharp edges cause injuries
Workers cut hands on raw sheet edges |
✓ Integrated edge hemming option
Safe rolled edges, fewer workplace injuries |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Rectangular Duct Fabrication
The Pittsburgh lock is the standard longitudinal seam for rectangular HVAC ducts worldwide — this machine is essential for any duct shop.
Custom Sheet Metal Work
Forming locks and hems for custom enclosures, cabinets, and architectural metalwork.
High-Volume Production
Integration with auto duct lines or standalone high-volume lock forming for duct manufacturers.
Job Shop & Repair
Smaller shops and service contractors needing reliable lock forming for retrofit and repair work.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 500-1500 panels per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
