S Cleat Lock Former Machine SA-12S
Last updated: October 12, 2026
Specialized S-cleat lock forming machine for producing S-slip connectors used in traditional rectangular duct assembly.
Technical Specifications
What is a S Cleat Lock Former Machine SA-12S?
This is a professional sheet metal and HVAC duct fabrication machine manufactured by Preda Machine. Designed for industrial duct production, this equipment delivers consistent quality, high efficiency, and reliable performance for HVAC contractors, duct fabrication shops, and sheet metal workshops worldwide. All machines are CE certified and backed by Preda Care after-sales service.
Key Features
- Dedicated S-cleat profile
- Hardened alloy steel forming rollers
- Consistent cleat dimensions
- Stand-mounted with feeding guide
- Low noise operation
Still Losing Money to Weak Duct Seams and Air Leakage?
Every HVAC duct shop faces the same bottleneck: hand-forming Pittsburgh locks. When your team spends hours on inconsistent seam quality, your production capacity drops, labor costs rise, and deadlines slip. The S Cleat Lock Former Machine SA-12S is engineered to eliminate these inefficiencies — automating S cleat lock former while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your SA-12S S-slip machine workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The S Cleat Lock Former Machine SA-12S operates on a proven principle: S cleat lock former should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Material Feeding
The sheet metal edge is fed into the forming rollers, guided by adjustable fences that ensure perfect alignment every time.

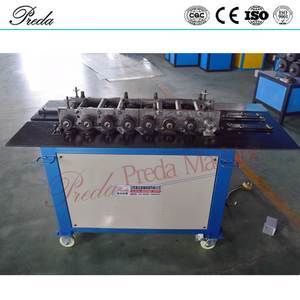

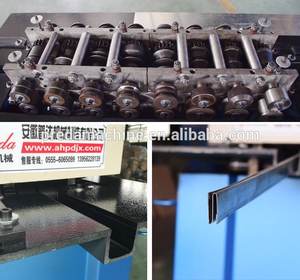

Multi-Station Roll Forming
7 or more precision roller stations progressively bend the metal edge into the Pittsburgh lock profile — male on one side, female on the other.
Edge Hemming (Optional)
Additional roller sets can simultaneously form hems, drive cleats, or S-slips on the opposite edge in a single pass.
Discharge & Stacking
The formed panel exits the machine ready for assembly — simply hook the male and female locks together and close with a seam locker.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Hand-formed locks are inconsistent
Some seams too tight, some too loose, air leakage varies |
✓ Precision roller forming, identical every time
Consistent airtight seams, predictable quality |
|
✕ Slow manual forming
One worker can form 20-30 panels/hour by hand |
✓ Powered feed, 10-15m/min forming speed
One operator processes 100+ panels/hour |
|
✕ Multiple machines for different profiles
Need separate machines for Pittsburgh, S-slip, hem |
✓ Quick-change roller sets, multiple profiles on one machine
One machine does it all, save floor space and money |
|
✕ Sharp edges cause injuries
Workers cut hands on raw sheet edges |
✓ Integrated edge hemming option
Safe rolled edges, fewer workplace injuries |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Rectangular Duct Fabrication
The Pittsburgh lock is the standard longitudinal seam for rectangular HVAC ducts worldwide — this machine is essential for any duct shop.
Custom Sheet Metal Work
Forming locks and hems for custom enclosures, cabinets, and architectural metalwork.
High-Volume Production
Integration with auto duct lines or standalone high-volume lock forming for duct manufacturers.
Job Shop & Repair
Smaller shops and service contractors needing reliable lock forming for retrofit and repair work.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
S Cleat Lock Former SA-12S: Dedicated or Combined
The SA-12S makes S cleats and nothing else. That is either its strength or its limitation, depending on whether your assembly system uses S cleats exclusively. If it does, a dedicated machine beats changing profiles on a combined one.
| Machine | Profiles | Changeover | Best fit |
|---|---|---|---|
S Cleat Lock Former Machine SA-12S This machine — S cleat only | S cleat One profile, set once | None in normal use Left set up permanently | Your system uses S cleats exclusively Fastest per piece and no changeover errors |
Both profiles on one machine | S cleat and drive cleat Two settings, one machine | Profile change between jobs Flexible | You need both profiles and volume is moderate One machine, two jobs — but changeover discipline matters |
Drive cleats only | Drive cleat Set once | None in normal use Dedicated | Drive cleats are the volume item in your shop Frees other machines for other work |
The duct seam | Pittsburgh lock Different operation | N/A Upstream | You are building a rectangular duct line Seams and cleats are complementary |
Cuts the stock | N/A Upstream | N/A Strip preparation | You cut cleat stock in house Width accuracy determines cleat fit |
Keeping a Dedicated Cleat Machine Productive
The value of a dedicated machine is that it is always ready. Protect that and it will outperform a combined machine on every measure that matters.
- 1. Marking makes drift visible at a glance. Locking prevents it. Both cost nothing.
- 2. Profiles vary by market. One sample check prevents a batch that cannot be assembled.
- 3. Width is the main variable in cleat fit, and it comes from the supplier rather than the machine.
- 4. Removes the most common assembly difficulty outright.
- 5. A burr prevents seating and looks like a forming fault.
- 6. Because the machine is always ready, batching is nearly free and it keeps cleats off the critical path.
- 7. Catches tooling wear before it becomes a site problem.
- 8. The number that tells you whether the dedicated machine is still justified by your volume.
S Cleat Former Faults: Symptom, Cause, Fix
With the tooling set and locked, faults come from stock, wear or the wrong profile — not from adjustment.
| Symptom | Most likely cause | What to do |
|---|---|---|
Cleat will not assemble Wrong profile for the system | The profile looks right and is a different system Costly because it reaches site | Confirm against a customer sample before running any batch Get the specification in writing at order stage |
Fit varies between coils Strip width variation | Supplier width tolerance A purchasing issue rather than a machine issue | Measure width on the first piece of each coil and record it Speak to the supplier if it varies beyond tolerance |
Length inconsistent No positive stop | Free-hand positioning The most common assembly difficulty | Fit a length stop and require every piece against it Check it weekly |
Burr prevents seating Cut ends not deburred | A burr stops the cleat seating Looks like a forming fault | Deburr before forming and check the shear blade A worn blade is the usual root cause |
Profile drifts over months Tooling wear | Gradual wear on the profile rolls Drift rather than sudden failure | Dry-fit monthly and replace tooling on measurable drift Keep a spare set |
Tooling found out of adjustment Not locked after set-up | Vibration loosens adjustments over time A discipline issue | Lock every adjustment and mark the position Add it to the weekly check |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 500-1500 panels per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your S Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
