Fire Dampers: Critical Safety Components
Fire dampers are critical safety components installed in HVAC ductwork to prevent the spread of fire and smoke through building ventilation systems. When a fire occurs, the damper's fusible link melts at a specified temperature (typically 74°C/165°F), causing the damper blades to close and seal the duct — containing the fire to its originating compartment.
Producing fire dampers requires specialized equipment — they're more complex than standard duct components, with precision frame fabrication, blade forming, and actuator mounting. Preda offers a complete Fire Damper Production Line that automates the entire manufacturing process.
Quick Answer
The Preda Fire Damper Production Line is a complete automated solution for manufacturing fire dampers from raw coil to finished product. It includes decoiling, leveling, punching, notching, shearing, folding, and frame assembly — producing UL-certified fire dampers in sizes from 100×100mm to 1600×1600mm. Ideal for duct manufacturers looking to add fire damper production as a high-margin product line.

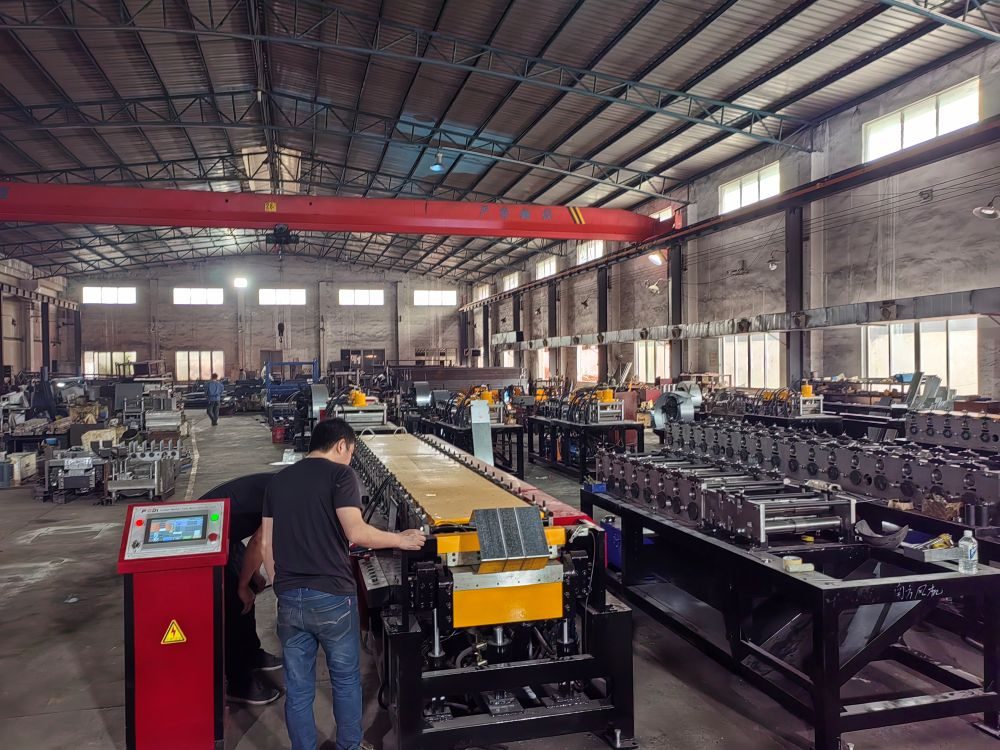

The Complete Fire Damper Production Line
Line Components and Process
| Station | Function | Key Feature |
|---|---|---|
| 1. Decoiler | Unwinds raw galvanized coil | 5-ton capacity, motorized |
| 2. Leveler | Flattens coil material | 7-roller precision leveling |
| 3. Punching Station | Punches mounting holes and slots | CNC programmable, multi-punch |
| 4. Notching Station | Cuts corner notches for folding | Precision corner notching |
| 5. Shearing Station | Cuts material to length | Hydraulic shear, ±0.5mm accuracy |
| 6. Folding Station | Folds frame sides and flanges | CNC controlled, 0–180° bending |
| 7. Assembly Station | Assembles frame, blades, actuator | Pneumatic clamping, welding integration |
Fire Damper Types Produced
- Dynamic fire dampers: For systems with air velocity up to 2000 fpm (10 m/s)
- Static fire dampers: For systems that shut down during fire (no airflow)
- Curtain blade dampers: Single-piece curtain blade — most common type
- Multi-blade dampers: Multiple blades for larger sizes
- Ceiling radiation dampers: For ceiling penetration protection
Why Invest in a Fire Damper Production Line?
1. High-Margin Product Line
Fire dampers command significantly higher margins than standard ductwork. They're certified safety products with less price competition — customers prioritize certification and reliability over lowest cost. Adding fire damper production can increase your shop's overall profit margin by 15–25%.
2. Complete Product Offering
Contractors and mechanical engineers prefer to source all HVAC components from one supplier. By offering fire dampers alongside your ductwork, you become a one-stop shop — increasing customer loyalty and average order value.
3. Regulatory Compliance
Building codes increasingly require fire dampers in all commercial construction. As fire safety regulations tighten, demand for certified fire dampers continues to grow. Investing in production capacity now positions you for long-term growth.
4. Automated Production
The Preda Fire Damper Production Line automates the entire manufacturing process — from raw coil to finished damper. With only 2–3 operators, the line can produce 50–100 fire dampers per shift — significantly reducing labor cost per unit.
How to Choose and Plan
- Assess market demand: Research local building codes and fire damper requirements. Talk to contractors and engineers about their fire damper sourcing needs
- Determine size range: Most commercial projects need 100×100mm to 1200×1200mm. Industrial and large-scale projects may need up to 1600×1600mm
- Calculate ROI: Factor in labor savings, margin increase, and new revenue from fire damper sales. Most lines achieve ROI within 12–18 months
- Plan factory space: The complete line requires approximately 25–35m of linear floor space. Ensure adequate material storage and finished product area
- Certification planning: Fire dampers require UL or equivalent certification. Preda can provide guidance on certification testing and documentation requirements
Preda Care: Fire Damper Line, Complete Support
The Fire Damper Production Line includes comprehensive Preda Care support: on-site installation by our engineers, 10-day operator and maintenance training, lifetime remote PLC support, free replacement tooling (punches, dies, blades), global agent network for local service, and certification guidance for UL/CE marking. We don't just sell you a machine — we help you build a profitable fire damper business.
Interested in Adding Fire Damper Production?
Contact us for a detailed feasibility study — we'll assess your market, calculate ROI, and provide a complete production line configuration tailored to your needs.
