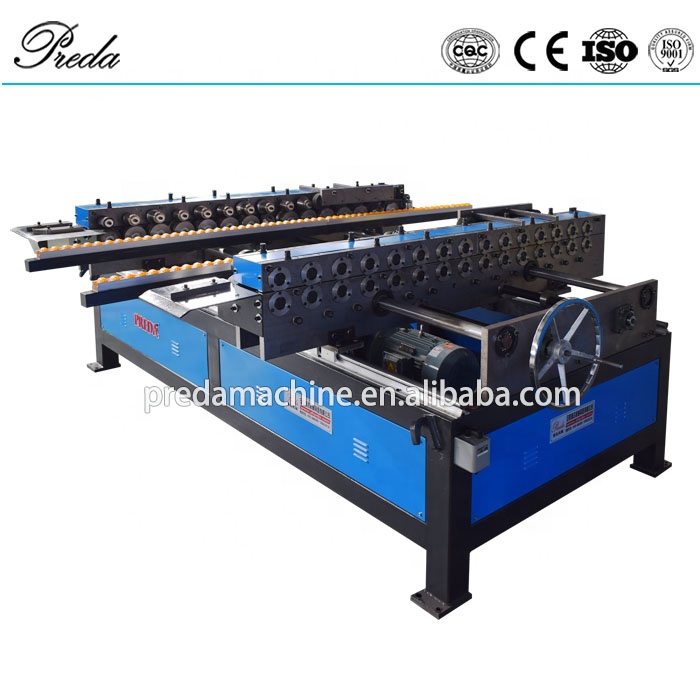

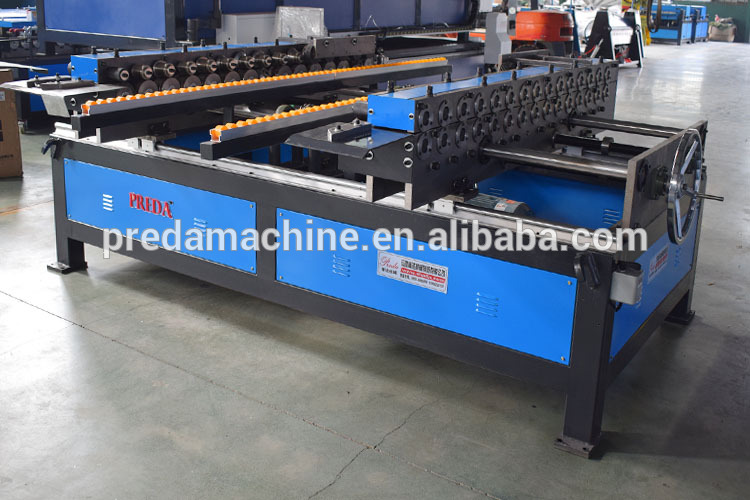

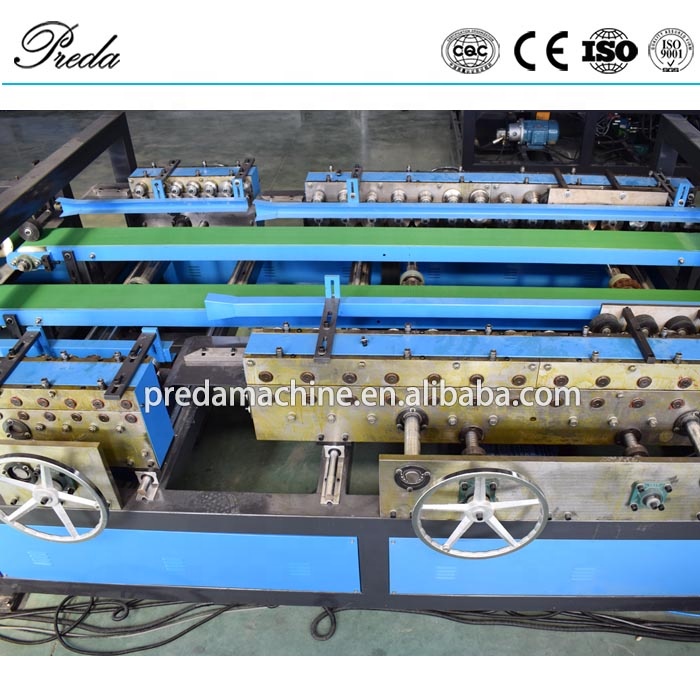

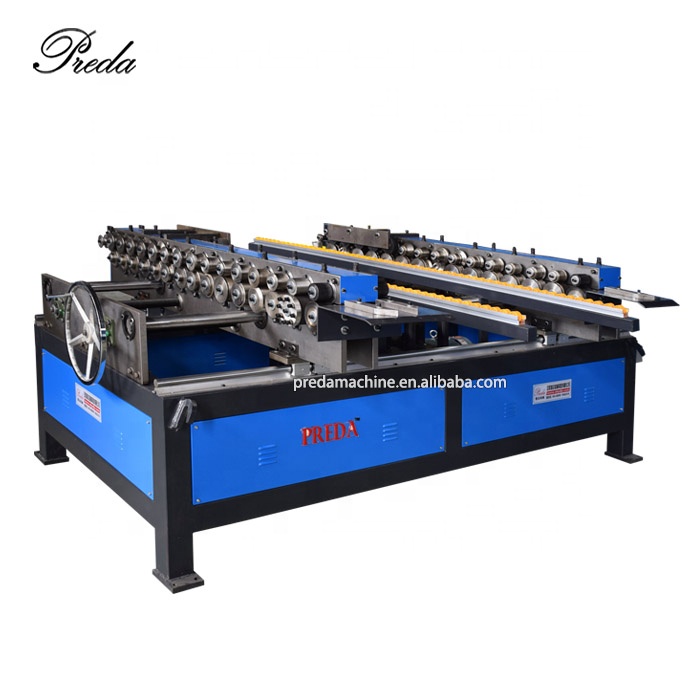

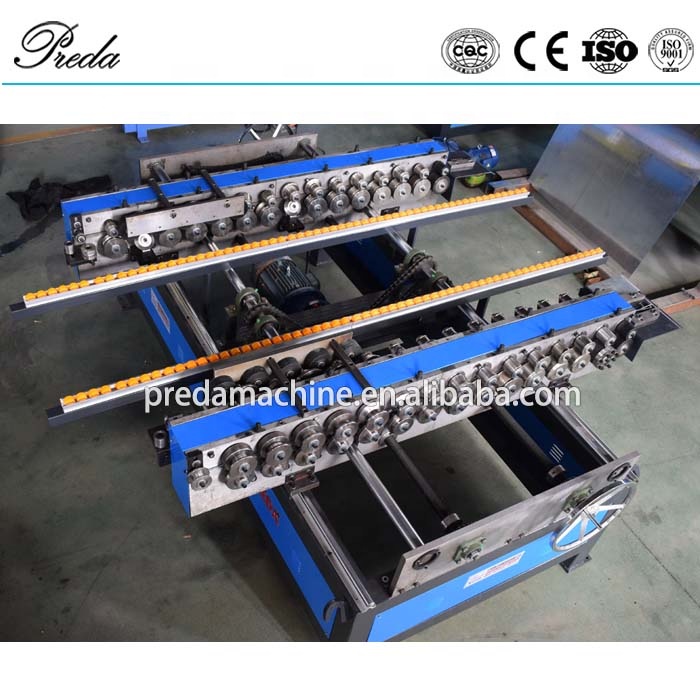

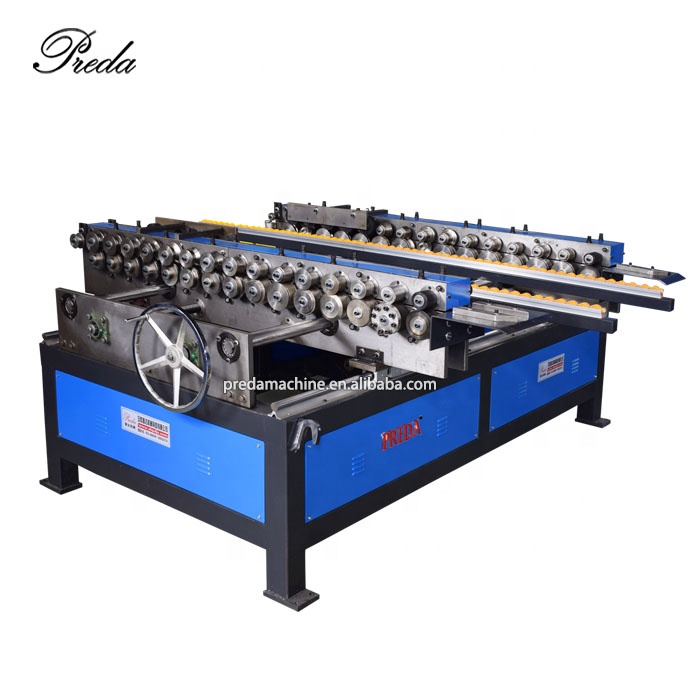

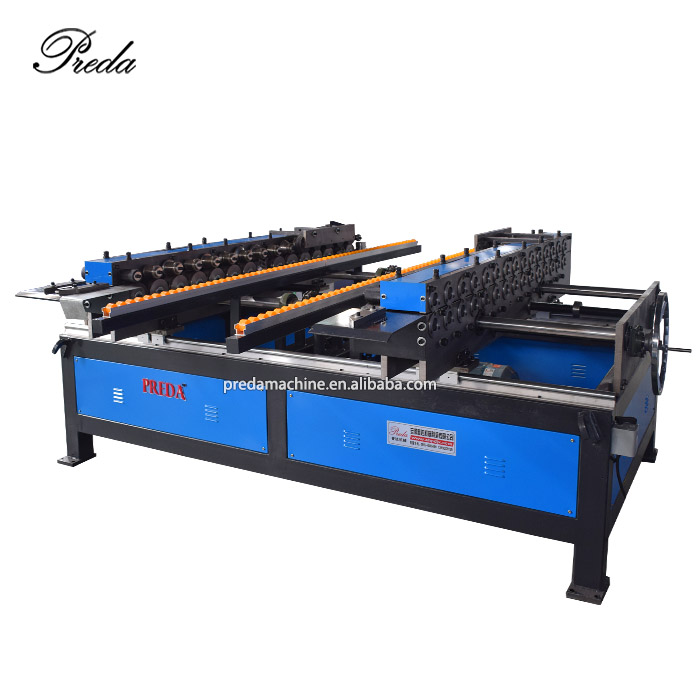

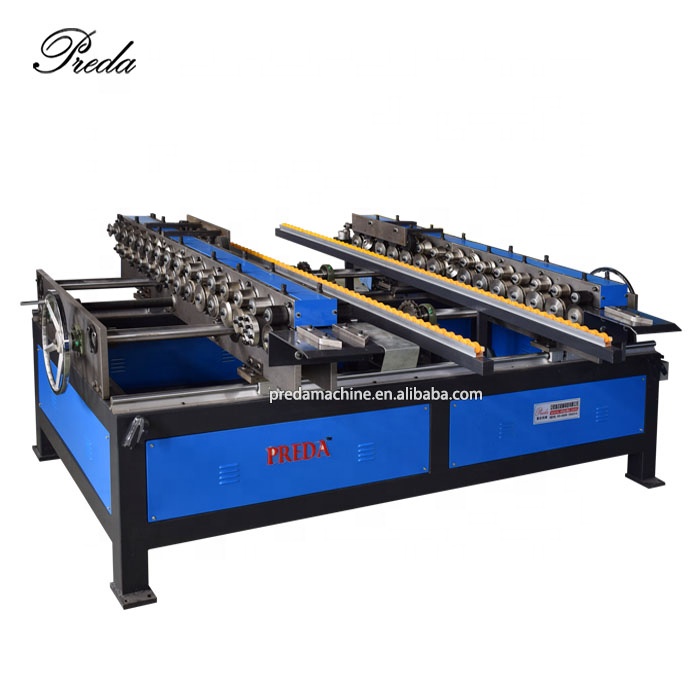

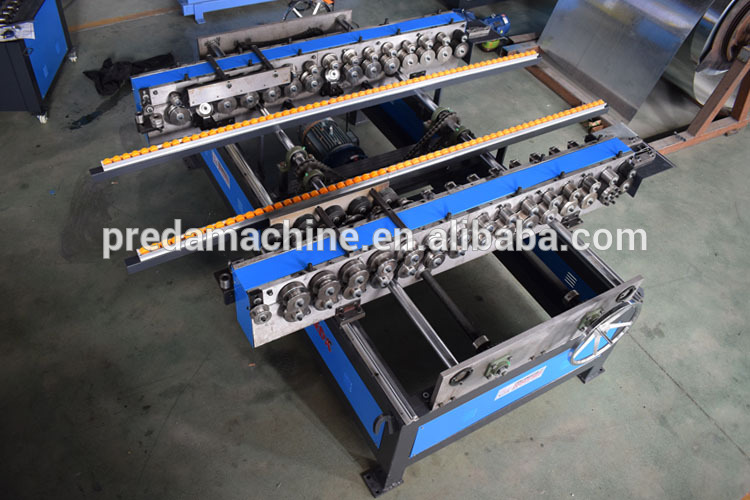

Duplex TDF Flange Forming Machine
Last updated: October 12, 2026
Dual-head TDF flange former for simultaneous forming on both duct edges, doubling throughput.
Technical Specifications
What is a Duplex TDF Flange Forming Machine?
A flange forming machine is sheet metal equipment that produces TDF (Transverse Duct Flange) or TDC (Transverse Duct Connector) flanges on the edges of rectangular duct panels. These flanges allow duct sections to be bolted together with gaskets for air-tight connections. Flange formers are typically used in conjunction with auto duct lines or as standalone machines for custom ductwork fabrication.
Key Features
- Two-side forming in one pass
- Significantly increases productivity
- Precision flange dimensions
- Heavy-duty gear drive
Still Losing Money to Slow Flange Installation and Poor Seals?
Every HVAC duct shop faces the same bottleneck: manual flange forming and riveting. When your team spends hours on inconsistent flange dimensions, your production capacity drops, labor costs rise, and deadlines slip. The Duplex TDF Flange Forming Machine is engineered to eliminate these inefficiencies — automating duplex TDF flange former while delivering consistent, factory-grade quality.
In this guide, we break down exactly how this machine transforms your dual head TDF machine workflow, what specifications matter for your operation, and how to calculate your return on investment. Whether you run a 3-person job shop or a 50-employee production facility, understanding these details directly impacts your bottom line.
How It Transforms Your Production Line
The Duplex TDF Flange Forming Machine operates on a proven principle: duplex TDF flange former should be a continuous, automated process — not a series of manual interventions. Here is the step-by-step workflow that makes this possible:
Panel Feeding
The duct panel edge is fed into the flange forming rollers, with adjustable guides ensuring proper alignment.

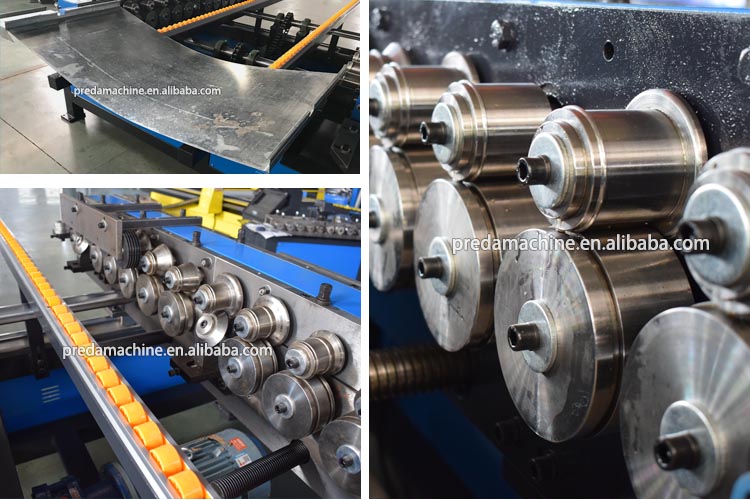

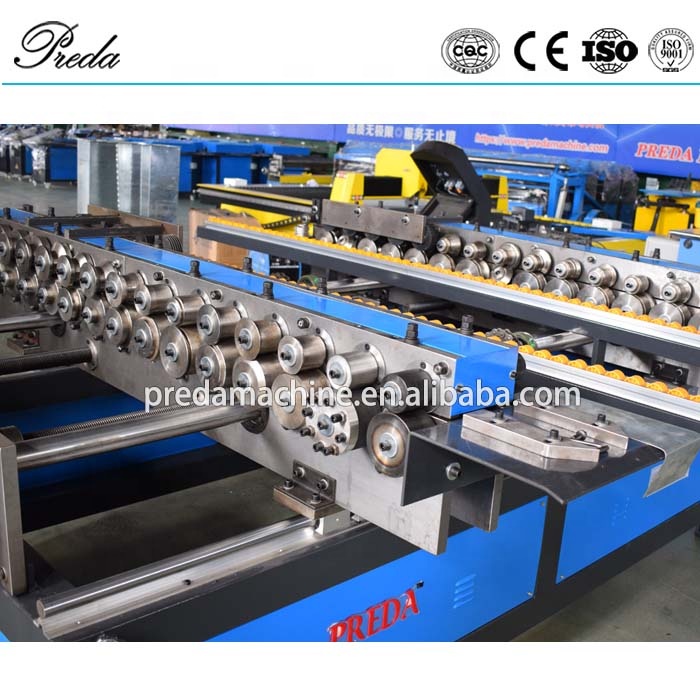

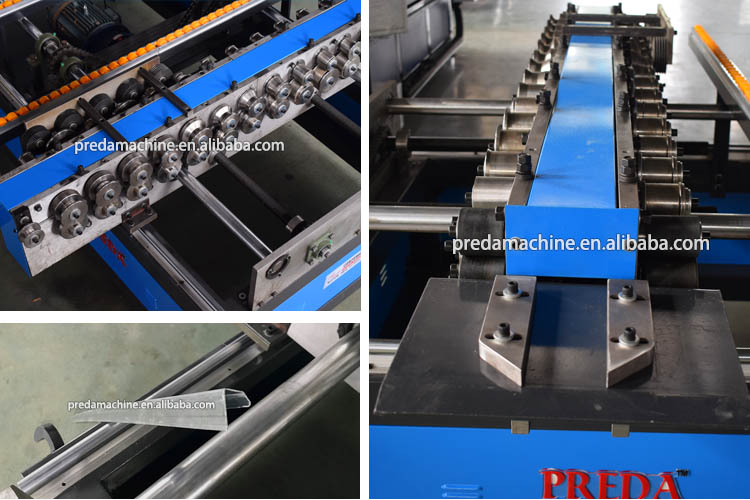

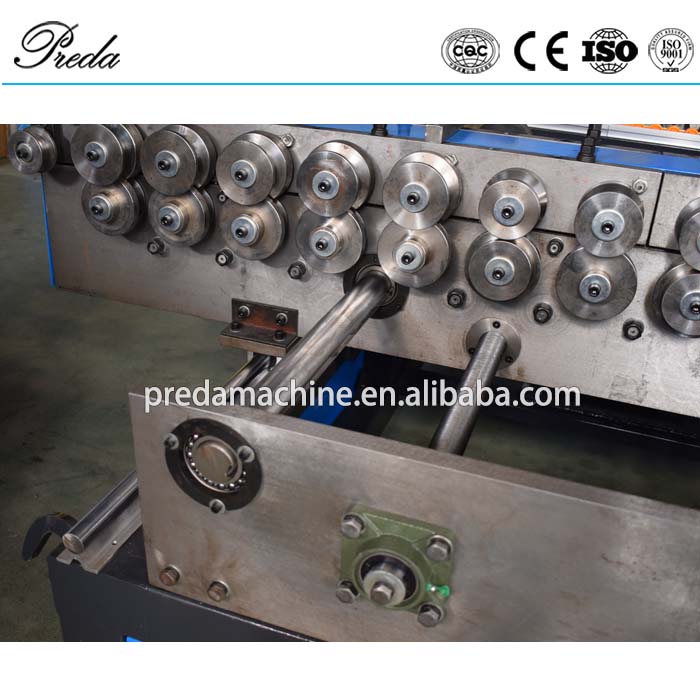

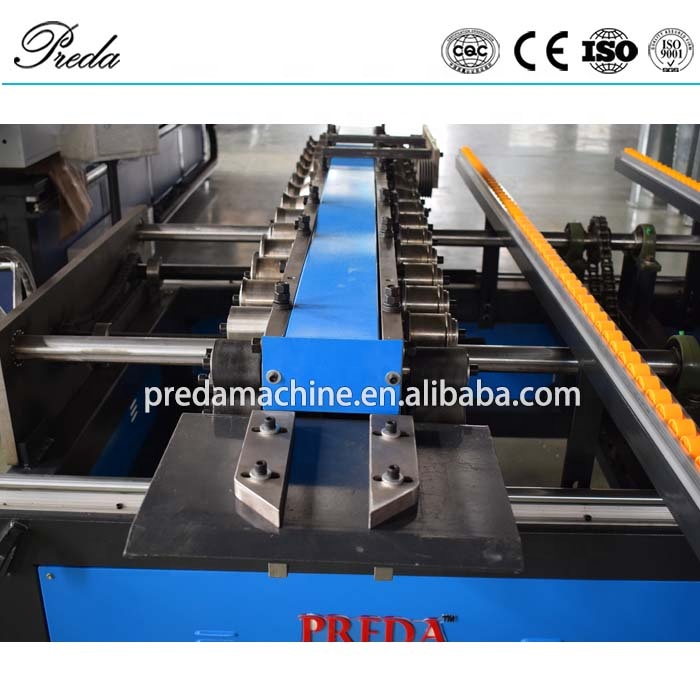

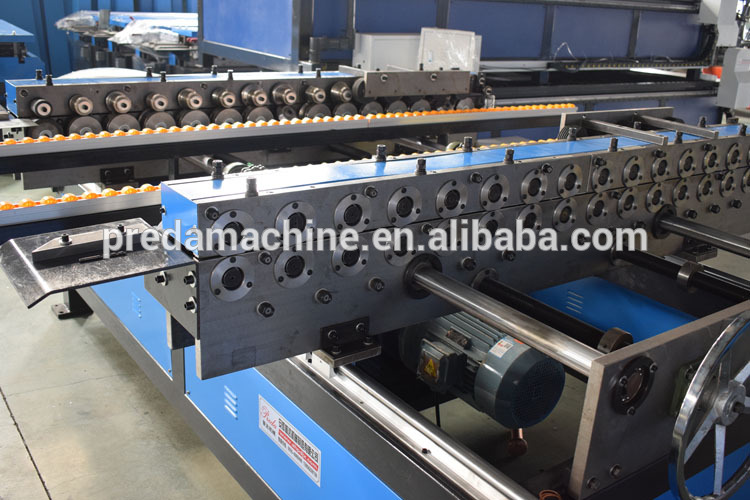

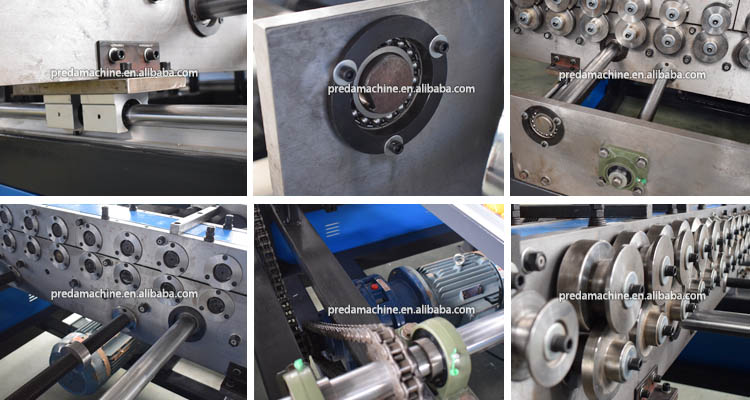

Flange Roll Forming
Multiple roller stations progressively form the TDF/TDC flange profile — creating the integral flange that replaces traditional angle iron frames.
Corner Notching (Optional)
Integrated notching stations cut the corner reliefs needed for clean 90° flange corners.
Corner Crimping
Hydraulic or pneumatic corner tools crimp the flange corners, creating a rigid, square connection point.
Technical Specifications & Performance Data
Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:
| Parameter | This Machine | What It Means for You |
|---|---|---|
| Control System | PLC with touchscreen | Easy programming, consistent results, minimal training |
| Construction | Heavy-duty steel frame | Vibration-free operation, 10+ year service life |
| Certification | CE certified | Meets European safety and quality standards |
| Warranty | 2 years | Peace of mind with comprehensive factory warranty |
Problems Solved: Before vs. After
We asked 50+ HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:
| Without This Machine | With This Machine |
|---|---|
|
✕ Angle iron flanges are heavy and slow
Welding angle iron takes 10-15 min per duct, adds weight |
✓ TDF integral flange formed in seconds
Flange time reduced to 30 seconds, 40% lighter |
|
✕ Flanges don't align on site
Gaps between flanges cause air leakage, need shimming |
✓ CNC-formed flanges with ±0.3mm accuracy
Perfect flange alignment, gasket seals every time |
|
✕ Riveting is slow and labor-intensive
Each flange needs 8-12 rivets, 5-10 minutes per duct |
✓ TDF flange is integral — no rivets needed
Eliminate riveting entirely, save 70% assembly time |
|
✕ Corner gaps and leaks
Poor corner construction is the #1 leak source |
✓ Hydraulic corner crimping creates tight corners
Leakage class C compliance, no corner leaks |
Where It Fits in Your Factory
This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:
Commercial HVAC Ductwork
TDF flanges are the global standard for commercial rectangular duct connections — used in offices, hospitals, schools, and retail.
Industrial Ventilation
TDC flanges for high-pressure industrial systems where heavier gauge and stronger connections are required.
Duct Retrofit & Replacement
Upgrading old angle-iron duct systems to modern TDF flange technology for better sealing and faster installation.
Prefabrication Facilities
High-volume duct prefab shops where consistent flange quality is essential for just-in-time delivery to construction sites.
Frequently Asked Questions
Click each question to see the answer. These are the questions our sales engineers hear most often:
Duplex TDF Forming: Choosing the Right Configuration
"Duplex" simply means both panel edges are formed without turning the panel. It is the configuration most shops should buy once they pass about 600 panels a day, and it is the configuration most often bought too early. Use this table to check whether your volume actually justifies it before you spend the difference.
| Configuration | Passes per panel | Realistic panels per hour | Verdict |
|---|---|---|---|
Duplex TDF Flange Forming Machine This machine — both edges, one pass | One pass No manual turning | 120–200 at two operators Limited by infeed, not by the machine | The right buy above roughly 600 panels a day Below that, the saving rarely covers the capital |
One edge per pass | Two passes plus a turn Operator-paced | 70–110 Adequate for most job shops | Standard commercial volume with one operator Buy this first and upgrade when you are certain |
Twin heads on one shaft | One pass Mechanically the same idea | 140–220 Slightly faster on wide panels | Wide panels at sustained volume Compare with this machine on panel width, not on name |
Forming plus corner preparation | One pass Removes a downstream station | Comparable, with fewer handlings Saves labour elsewhere | Corner preparation is your second bottleneck Only pays if the corner bench is genuinely slowing you |
TDC profile | As configured Different profile | Lower — deeper section TDC moves more material | Your specification requires TDC Not a heavier version of TDF — a different system |
Commissioning a Duplex Former: The Eight Things That Decide Output
Duplex forming doubles the throughput per pass and roughly doubles the number of things that can be set wrongly. Do these in order and the machine will hit its rated output in the first week.
- 1. A duplex machine is set for a width. Running mixed widths means resetting between panels, which is exactly the time you bought the machine to save. Batch by width and protect the advantage.
- 2. A duplex frame is wider than a single head and settles differently. Re-check with a precision level after the first week and shim if needed.
- 3. Form one panel, measure both flanges, and adjust only the station that is out. If they differ by more than 0.2 mm, fix it before running production.
- 4. Both stations run from one drive. Mark the coupling and confirm the mark lines up after a week of running — any slip shows as a mismatch between the two flange heights.
- 5. A panel supported only at the entry will sag between the stations and produce a flange that is correct at one end and short at the other.
- 6. Record gap, guide position and speed for 24, 22 and 20 ga. This single habit removes most of the set-up scrap that new operators produce.
- 7. Dimensions drift in the first 10–20 pieces after the machine has cooled overnight. Ten scrap panels cost less than one rejected duct.
- 8. Daily totals hide set-up losses. An hourly count shows you exactly where the time is going and whether the duplex configuration is actually paying off.
Duplex Former Faults: Symptom, Cause, Fix
Because both stations share one drive and one frame, duplex faults are usually symmetry or feed problems rather than mechanical failure. Measure both flanges before you adjust anything.
| Symptom | Most likely cause | What to do |
|---|---|---|
The two flanges differ in height One station set differently from the other | Almost always an adjustment difference rather than wear The single most common duplex complaint | Form one panel, measure both flanges, adjust only the one that is out in 0.02 mm steps Never adjust both at once — you lose the reference |
Panel exits at an angle Stations not aligned to the guide fence | One station is pulling harder and rotating the panel Shows as a skew that grows along the panel | Check both stations against the fence with a 1 m square and shim as needed Re-check after heavy-gauge runs, which shift alignment fastest |
Output no better than the single-head machine it replaced Infeed cannot keep up | The machine waits for panels rather than the operator waiting for the machine Very common when one person feeds a duplex machine | Add a second operator or a powered infeed before spending anything else Time the cycle: if the stations idle more than they form, this is the cause |
Flange height drifts across a long run Head warming and expanding | Thermal growth changes the roll gap over the first hour Then it stabilises — which is why it looks like a random fault | Warm the machine with 20 scrap panels, then set the gap Re-check after the first two hours on any new job |
Marking or scoring on the flange face Roll surface damaged or debris in the pass | A sliver of galvanising rolls into the surface and then marks every panel that follows Often traced back to blades cut on a worn shear | Clean the rolls with a brass brush, never steel, and deburr blanks before forming Inspect under a bright light |
Machine trips only on the first start of the day Both stations starting under load | Inrush from two stations at once on a supply sized for one Usually a supply issue rather than a machine fault | Start with the drive disengaged, then engage If it persists, the supply or starter needs upsizing |
Professional Packaging & Global Shipping
Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.
Calculate Your Return on Investment
Based on average industry data, here is what a typical customer saves after installing this machine:
* Figures based on average customer data for a shop producing 300-800 duct sections per month. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
Ready to Upgrade Your Duplex Production?
Get a customized quote within 24 hours. Our engineers will help you configure the right machine for your specific production requirements.
