What is the difference between the Super Line 5 (AML-6) and the U-shape Line 5 (AML-5U)?

Both produce complete rectangular duct. The AML-6 integrates all functions into one machine — the most compact option, built for small and medium shops. The AML-5U uses a U-shaped multi-station layout for shops that prefer station-based flow. The right choice depends on your floor plan and maintenance preference; our engineers will lay out both options against your building.

What functions does the AML-6 include?

Beading, notching, shearing, Pittsburgh lock forming (movable type), duplex TDF flange forming, duplex angle steel flange forming and folding — the complete rectangular duct process, plus servo feeding, all under one computer control system.

How much coil can it hold?

Four electric coil cradles with four material trays, taking 5-7 tonnes per roll — enough coil capacity to run production without constant coil changes.

What are the dimensions and power?

AML-6-1300 measures 5600×3600×1650mm at 13kW and 4 tonnes; the 1500 and 1600 models run 15kW at 4.5-5 tonnes. Working speed is 16 m/min in 0.45-1.5mm material.

Is the AML-6 suitable for high-volume production?

It is designed for small and medium duct shops needing full-process capability in one machine. For very high-volume production, a conventional straight Line 5 with dedicated stations may deliver more throughput per shift — our engineers compare the two against your target output.

Super Auto Duct Line 5 AML-6 - detailed view

Auto Duct Lines

Super Auto Duct Line 5 AML-6

Last updated: October 14, 2026

$58,000

Super Auto Duct Line 5 (AML-6), also known as Mini Auto Duct Line 5. All functions in one machine — efficient production and space saving. An economical, applicable rectangular duct production line for small and medium-sized duct shops.

Technical Specifications

ModelsAML-6-1300 / 1500 / 1600

Material Thickness0.45-1.5 mm

Max Width1300 / 1500 / 1600 mm

Working Speed16 m/min

Request a Quote → Contact Sales

What is a Super Auto Duct Line 5 AML-6?

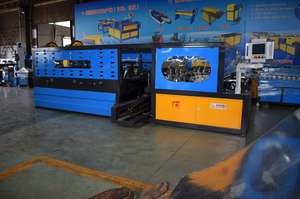

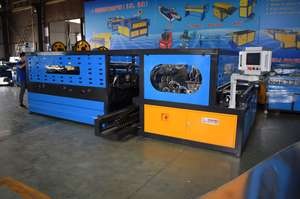

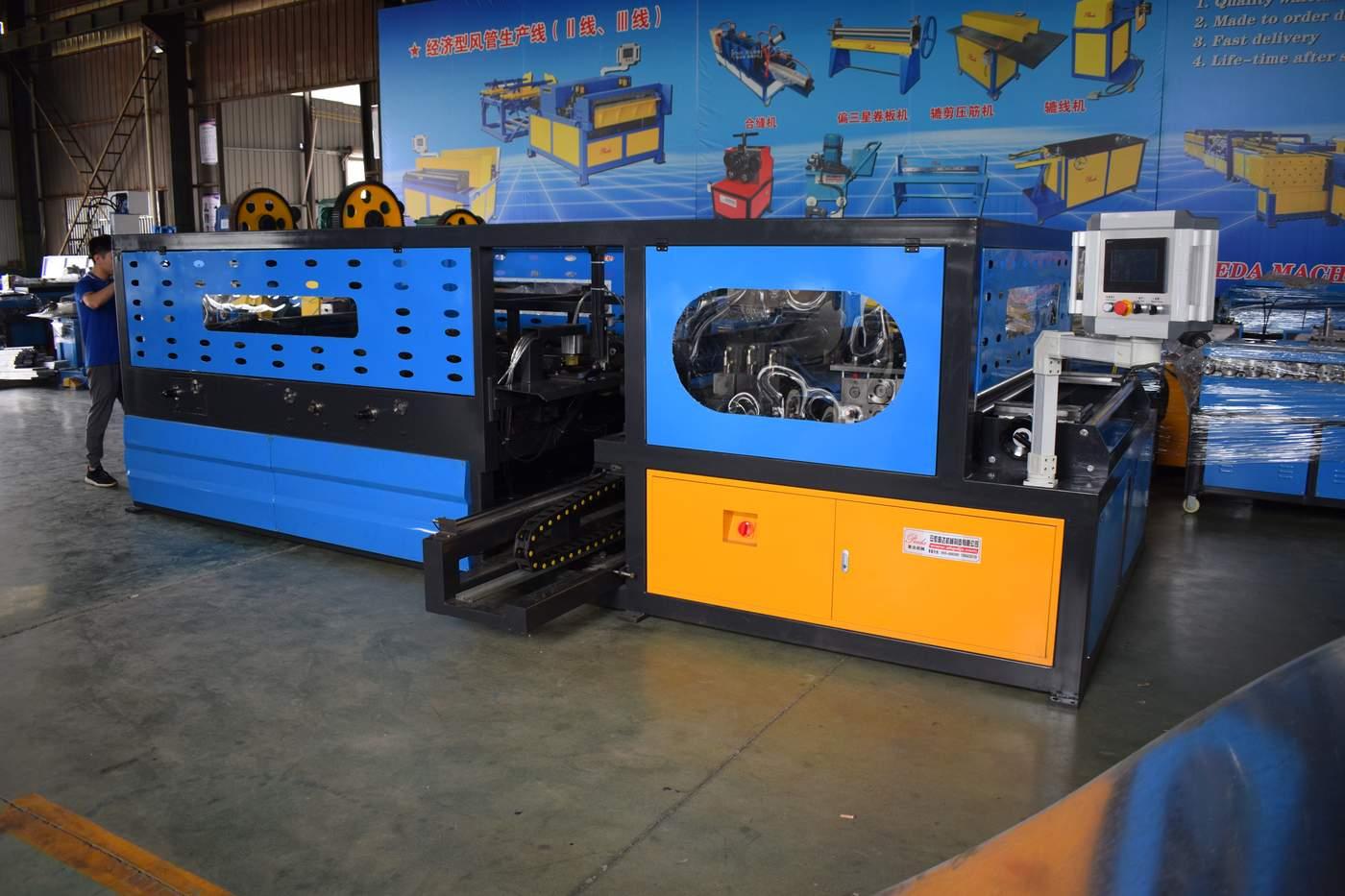

The Super Auto Duct Line 5 (AML-6), also called the Mini Auto Duct Line 5, packs the complete duct production process into one machine: beading, notching, shearing, Pittsburgh lock forming, duplex TDF flange forming, folding and shearing. It is the economical, space-saving answer for small and medium duct shops that need full-line output without full-line floor space.

Key Features

All functions in one machine: beading, notching, shearing, Pittsburgh, duplex TDF flange forming, folding and shearing
Four electric coil cradles, 4 material trays (5-7t per roll)
Movable type lock forming machine plus duplex TDF and angle steel flange formers
Servo feeding platform and hydraulic folding machine

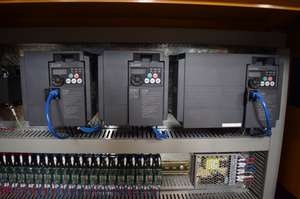

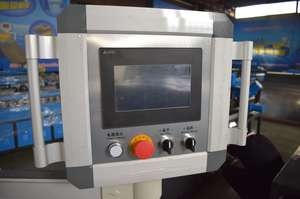

Computer controlling system throughout
Economical and space-saving — built for small and medium duct shops

Full Duct Process Needed, but a Conventional Line 5 Will Not Fit?

A conventional Line 5 is a train of separate stations — lockformer here, flange former there, folding station at the end — and the floor plan grows with every station you add.

The AML-6 integrates the whole process into one machine: coil cradles, host, movable lockformer, duplex TDF and angle steel flange formers, servo feeding and hydraulic folding, all under one computer control system. Full process, one machine, compact footprint.

How It Transforms Your Production Line

The Super Auto Duct Line 5 AML-6 works on a proven principle — here is the step-by-step workflow that makes it possible:

Coil Loading

Four electric coil cradles with four material trays (5-7t per roll) feed the line continuously.

Forming Functions

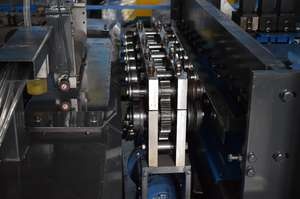

The host performs beading, notching and shearing as the strip runs.

Lock & Flange Forming

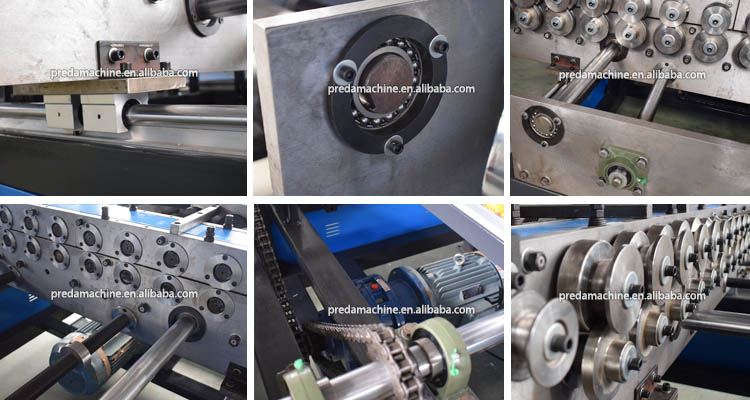

The movable type lock forming machine, duplex TDF flange former and duplex angle steel flange former run in sequence.

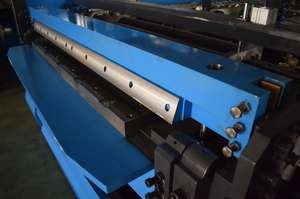

Folding & Output

The servo feeding platform and hydraulic folding machine complete the section — coil to finished duct in one machine.

Technical Specifications & Performance Data

Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:

Parameter	This Machine	What It Means for You
Control System	Computer controlling system	Consistent, repeatable operation with minimal operator training
Construction	Heavy-duty steel frame	Vibration-free operation, 10+ year service life
Certification	CE certified	Meets European safety and quality standards
Warranty	2 years	Peace of mind with comprehensive factory warranty

Problems Solved: Before vs. After

We asked HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:

Without This Machine	With This Machine
✕ Multi-station footprint A conventional Line 5 spreads across the whole shop	✓ All-in-one machine Complete process in one compact machine
✕ Material handling between stations Every station transfer is handling and delay	✓ Integrated stations Continuous flow inside one machine
✕ Small shops priced out Full Line 5 lines are built for large plants	✓ Economical configuration Full process sized for small and medium shops
✕ Complex line control Many stations, many controls to coordinate	✓ One control system Computer controlling system runs the whole process

Where It Fits in Your Factory

This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:

🏠

Small & Medium Shops

Full duct production capability in one machine — built for shops that cannot host a conventional line.

💡

Economical Automation

All functions without the cost of a multi-station Line 5 installation.

📦

Complete Process

Beading, notching, shearing, Pittsburgh, duplex TDF and angle steel flanging, folding — one machine.

🔄

Continuous Feeding

Four coil cradles and material trays keep the line fed through coil changes.

Frequently Asked Questions

Click each question to see the answer. These are the questions our sales engineers hear most often:

Preda Care

After-Sales That Never Expires

We know what keeps you up at night: "What if the machine breaks down and nobody helps me?" With Preda Care, that fear is gone. We stand behind every machine — not just for the warranty period, but for the entire lifecycle of your equipment. Years from now, when you need a spare part or technical advice, we will still be here.

🌍

Global Agent Network

Local service partners in 30+ countries. Get on-site support in your time zone, in your language. No waiting for a technician to fly in from China.

📦

Free Spare Parts Shipping

Wear parts fail — it is normal. We ship replacement parts worldwide by express courier, free of charge during warranty. Even after warranty, parts are at factory cost with fast shipping.

💻

Remote PLC Diagnostics

PLC or program issue? Our engineers connect directly to your machine via secure remote access. Most software problems are resolved within 2 hours — no service call, no downtime waiting.

⏱️

24-Hour Response Guarantee

WhatsApp, WeChat, or email — our technical team responds within 24 hours, every day of the year. Urgent issues get priority attention. You are never left waiting.

🔧

Lifetime Technical Support

Warranty expires — our support does not. Need advice on maintenance, troubleshooting, or upgrades 5 or 10 years from now? We are still just a message away.

🎓

Free Operator Training

Every machine includes comprehensive video training, operation manuals, and remote setup assistance. New operators? We train them too — at no extra cost, anytime.

Talk to Our Support Team → WhatsApp/WeChat: +86-18355321923 | jason@predamachine.com

Professional Packaging & Global Shipping

Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.

Overhead crane lifting machine for loading

Securing machine inside shipping container

✓ Wooden crate packaging ✓ Stretch film wrapping ✓ Container reinforcement ✓ Loading photos provided

Calculate Your Return on Investment

Based on average industry data, here is what a typical customer saves after installing this machine:

40-60%

Labor Cost Reduction

5-10x

Output Increase

6-12 months

Typical Payback Period

5-10%

Material Waste Reduction

* Figures based on average customer data for a shop producing 100-500 bends per day. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
