Square Blanks, Square Duct: What a 2500 mm CNC Hydraulic Shear Actually Gives You

The Error Chain Starts at the Shear

Most duct quality problems don't start where they get noticed. A panel comes off the line with a corner that won't close, the crew spends an hour fighting it, and the usual suspects get blamed — the lockformer, the brake, the material. But trace the panel backwards and the fault was usually decided at the first cut. A blank that's out of square by even a millimetre sits fine on the stack. Three stations later it shows up as a duct section that won't square up, and by then nobody remembers the shear.

That's why we treat the shear as a process machine rather than "the cutter in the corner." When the blank is square and dimensionally right, every station downstream looks good without anyone trying. When it drifts, the whole line absorbs the cost quietly — a re-worked panel here, a rejected section there — and the shear never gets the blame it deserves.

What Actually Controls Edge Quality

Three variables decide whether a cut edge is clean and square or rolled and burred. They're worth understanding because they're the first things to check when edge quality goes off:

• Blade clearance — the gap between upper and lower blades. Too wide: the edge rolls over and the blank carries a burr. Too tight: the blades dull fast and the sheet fractures early instead of shearing cleanly. For duct gauges, roughly 5–8% of sheet thickness is the working range — about 0.06–0.10 mm for 1 mm galvanized.
• Rake angle — the tilt of the blade across the width. It makes the cut progress from one end to the other, spreading the load. Wrong rake on thick sheet produces twist at the back edge.
• Blade condition — a sharp, correctly ground blade cuts with modest force; a chipped blade makes you push the machine harder and still get a ragged edge. This is the variable shops check least and pay for most.

Why Hydraulic, and Why 2500 mm

Mechanical shears use a flywheel and clutch — fine for constant thickness, but the cutting force isn't controllable, and thick sheet can stall the mechanism mid-cut. Hydraulic shears apply force through the whole stroke, cut smoothly through variable gauge, and protect the blade by limiting overload. For a shop that feeds it everything from 0.6 mm liner sheet to 4 mm structural plate, hydraulic is the difference between a clean edge and a folded one.

The 2500 mm cutting length is the duct-industry standard for a reason: standard galvanized coil slit to 1250 mm gives two 1250 mm blanks across, and 2500 mm handles the long dimension of the largest common duct panels in one pass. A shorter shear means either a second cut or a skipped size — both of which cost more than the price difference in the machine.

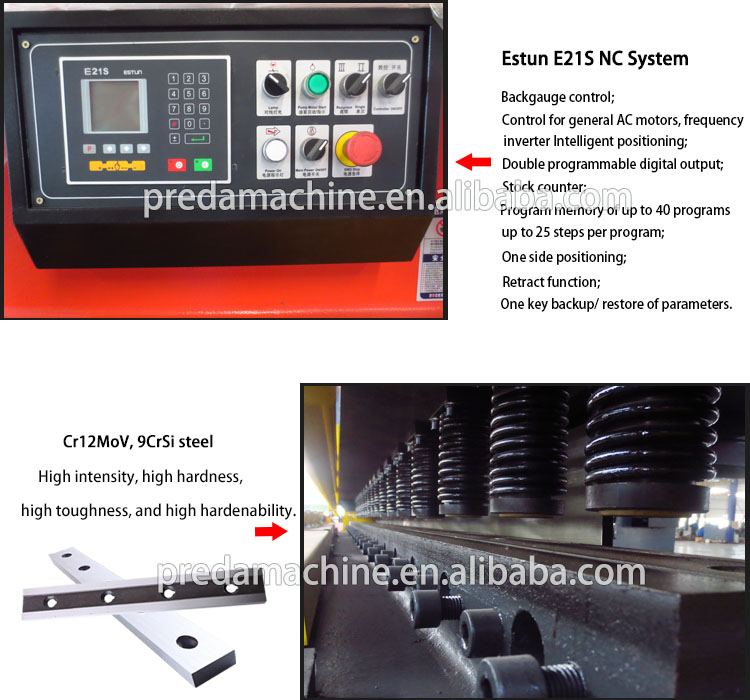

What the CNC Backgauge Really Saves

The cutting itself is a press — the CNC isn't automating the blade. What it automates is setup, and that's where the time and the errors live. Three things change when the backgauge is CNC-controlled:

• Length programming. Type the blank length, the backgauge moves to the stop. No tape measure, no "one more millimetre for the fold" guesswork.
• Batch sequences. Store all the blank sizes for a duct order as a list, step through them, and recall the same list next time the job repeats. The second run of a job takes seconds to set up.
• Cut counting. The control tracks pieces per batch and flags completion — useful for order packing and for catching miscounts before they reach the forming line.

There's a subtlety worth knowing: program by finished blank size, not nominal duct size. A 600 mm duct section needs a blank that accounts for seam and flange allowances. If the program stores "600," you'll get 600 and wonder why the duct comes out short. Program what the forming line actually needs.

Feeding Discipline: The Part Nobody Trains

CNC accuracy is worthless if the operator feeds the sheet crooked. The feeding sequence matters as much as the machine's spec:

1. Square against the side gauge first. The side gauge is the 90° reference; the backgauge only sets length. A sheet fed against a dirty or burred gauge drifts out of square quietly.
2. Support the out-feed. A long blank unsupported at the back bends under its own weight and rides up under the blade — the classic cause of "short" cuts that were actually bowed.
3. Cut from a trusted edge. When a job needs a reference edge, cut from the coil edge you trust and trim the opposite edge before critical dimensions.
4. Check the first piece, then trust the program. One squared first piece against the program dimensions is worth ten visual checks later in the run.
5. Keep the scrap bin clear. A piling scrap stack under the shear pushes the next sheet out of square. This single item causes more "mystery" miscuts than any blade issue.

The Maintenance Calendar That Keeps Edges Square

Blades take more abuse than anything else on a shear, and the machine's accuracy follows them. A calendar that works:

Regrind frequency for a duct shop cutting galvanized daily is typically every 6–12 months, depending on gauge mix and stainless volume. The signal is the burr line: when the underside of the edge starts rolling a visible burr, the blade is tired. Blades are usually reversible — four usable edges before replacement — so a regrind is cheap compared with a run of blanks that all carry a burr into the lockformer and cause misfeeds downstream.

The Cost Picture

For a machine that does one simple thing all day, the running costs are surprisingly modest — and the payback math is clean:

Payback, measured honestly: a manual shear with a tape-measured backgauge spends roughly 20–40 seconds per blank on measuring and re-checking. A CNC shear spends 2–3 seconds recalling a program. On 150 blanks a day, that's 1.5–2 hours of labour saved daily — $10,000–14,000 a year at modest shop rates. The CNC premium pays back inside the first year before you even count the scrap saved by eliminating measurement errors.
