What size material can the PC-1540 cut?

Cutting area 1500×4000mm, material thickness 0.5-20mm with the 63A plasma unit — covering the full HVAC duct gauge range plus structural plate.

How accurate is CNC plasma cutting?

The gantry follows the programmed path under CNC control, so every part in a nest is cut to the same file dimensions. Positional accuracy suits duct panel and fitting work; for tighter tolerances on thin material we can discuss laser cutting (PL series) as the alternative.

What software does it use?

Standard CNC control with nesting software — parts are nested in CAD/CAM and the program is sent to the machine. We provide operator training on the nesting workflow as part of commissioning.

Can it cut stainless steel and aluminum?

Yes. Plasma cutting suits mild steel, stainless steel and aluminum; consumables and gas are selected per material. For thin stainless where edge cosmetics matter, the fiber laser PL series is the better tool.

Is a plasma table worth it for a small shop?

If you cut more than a few panels or fitting sets a week, the table pays back in operator hours and sheet yield alone. For shops cutting only occasional blanks, our smaller plasma machines or the CNC hydraulic shear are more appropriate — our engineers will size the machine to your volume.

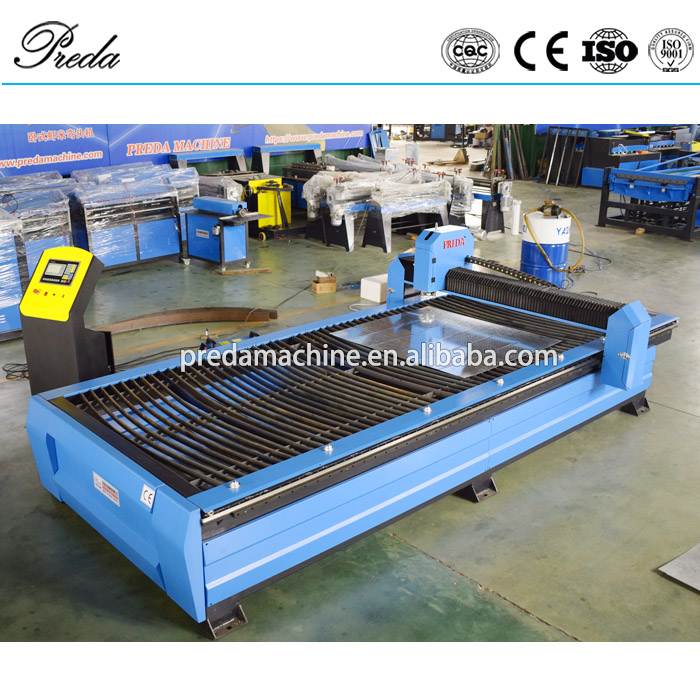

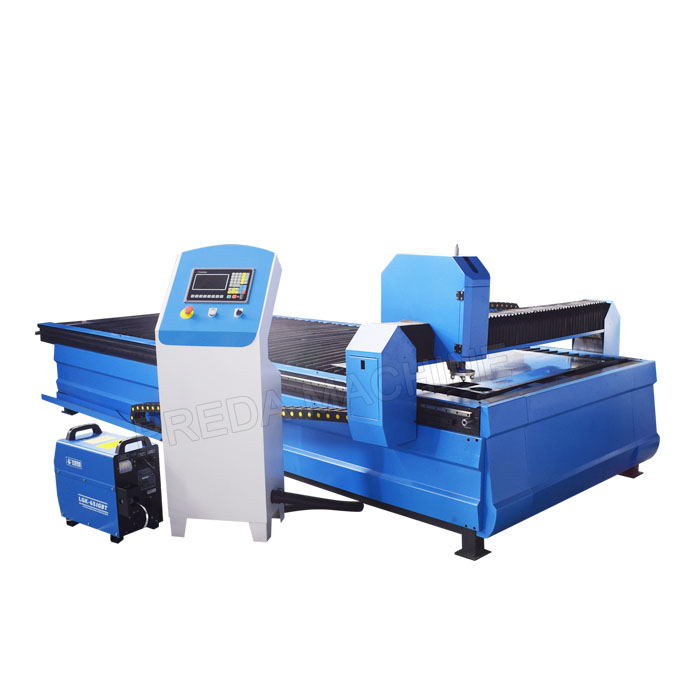

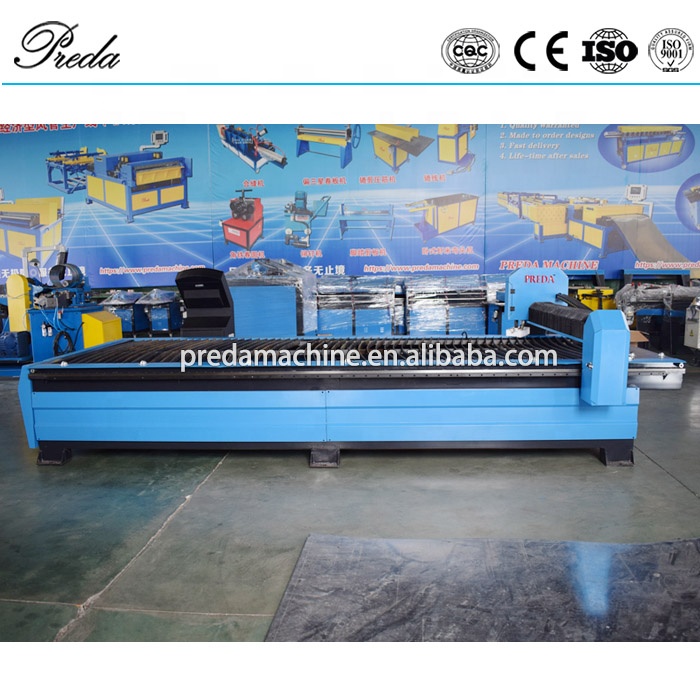

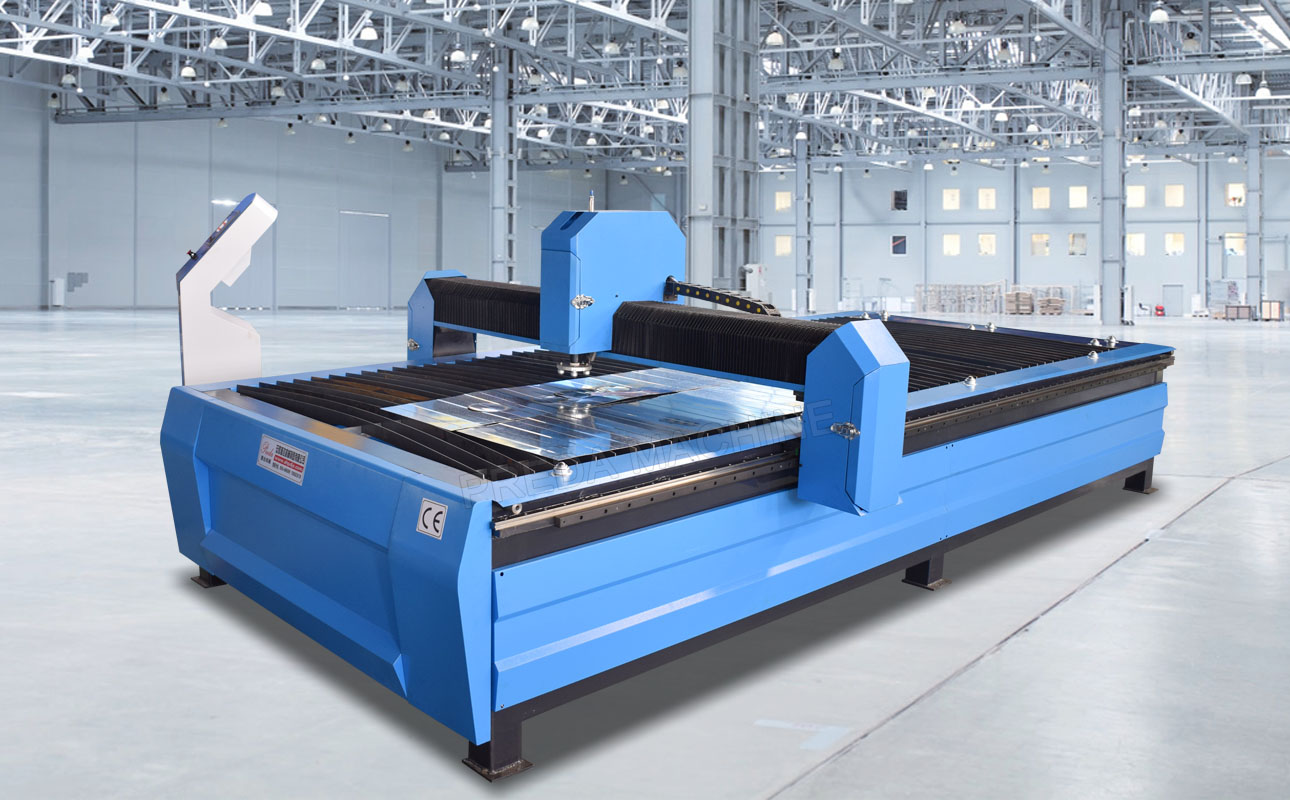

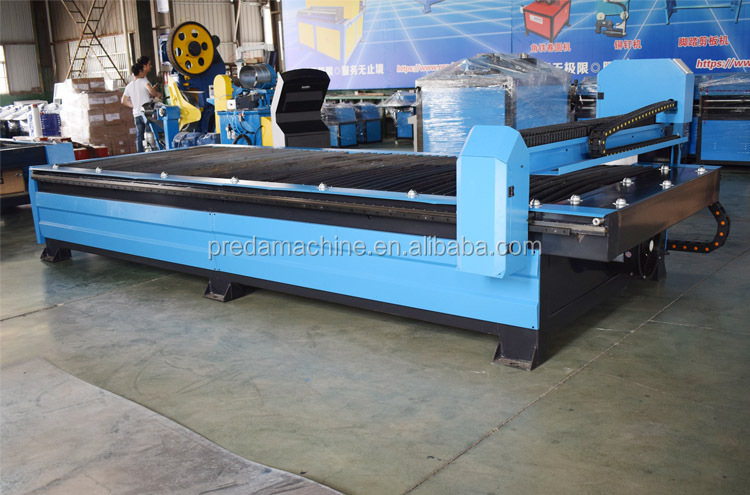

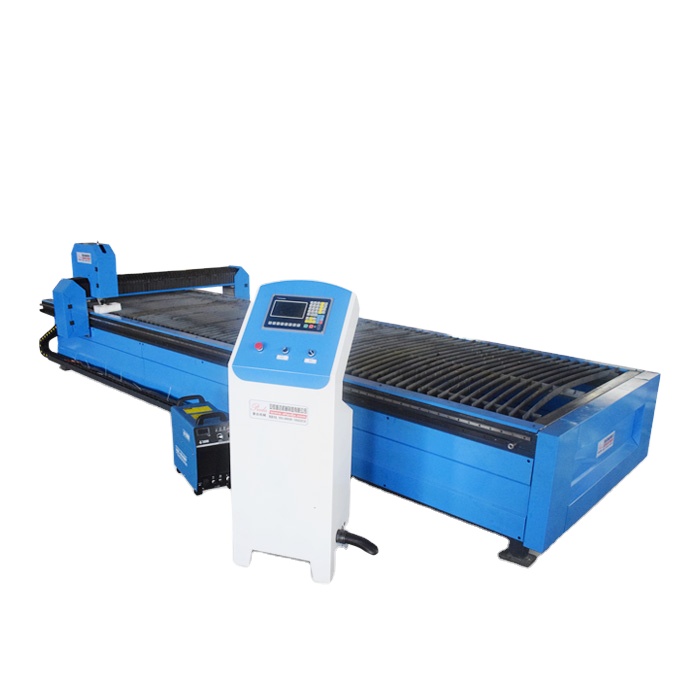

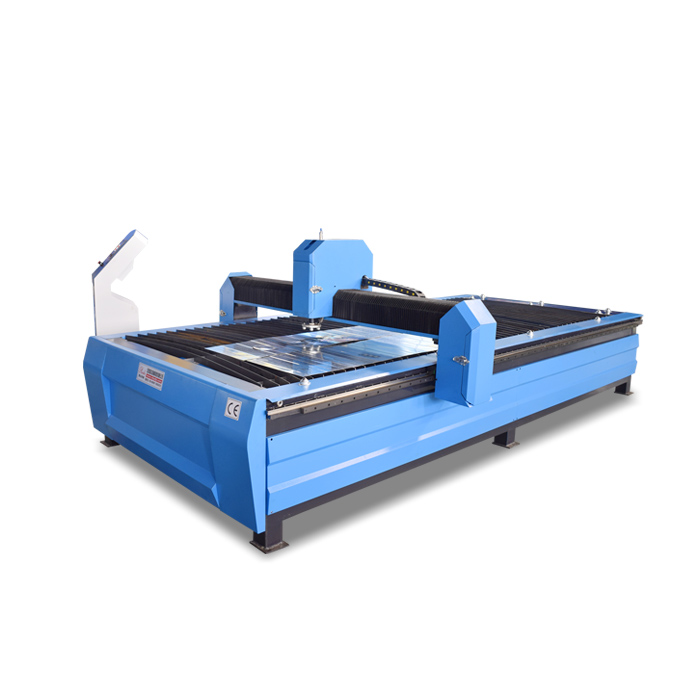

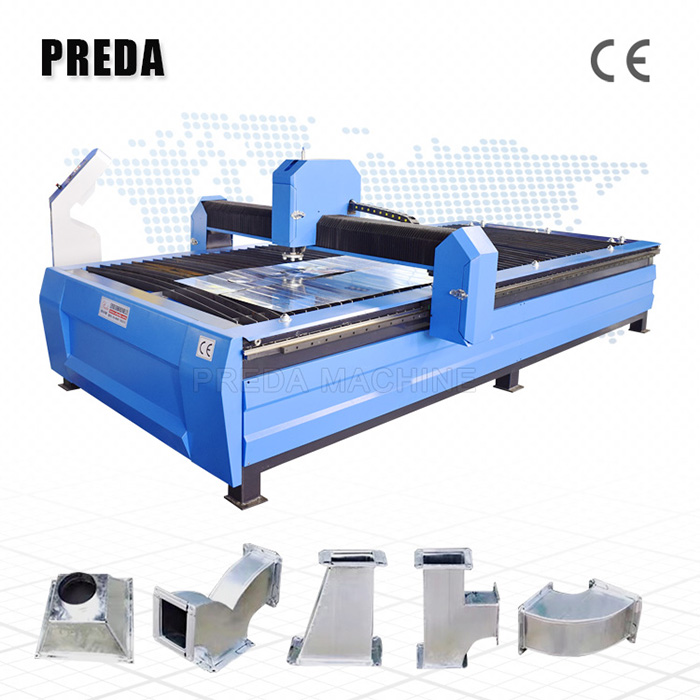

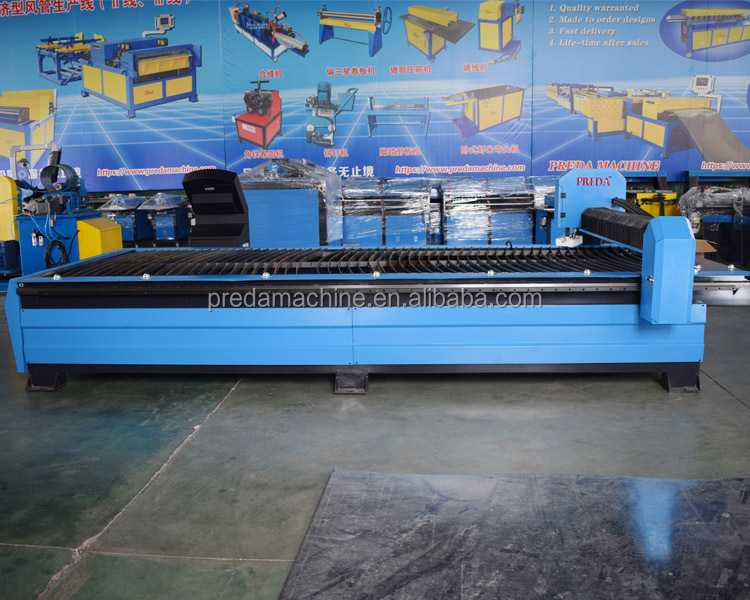

CNC Plasma Cutting Machine PC-1540 - detailed view

Cut & Slit

CNC Plasma Cutting Machine PC-1540

Last updated: October 14, 2026

$5,000

CNC plasma cutting machine for precision cutting of HVAC duct components, flat patterns and fittings — gantry-cut sheet metal straight from your nesting software.

Technical Specifications

ModelPC-1540

Cutting Area1500×4000 mm

Material Thickness0.5-20 mm (plasma)

Cutting SpeedUp to 8000 mm/min

Request a Quote → Contact Sales

What is a CNC Plasma Cutting Machine PC-1540?

A CNC plasma cutting machine cuts sheet metal with a high-velocity plasma arc under numerical control. The operator loads a nested sheet layout, presses start, and the gantry cuts every panel, fitting and gusset in the program — no layout marking, no torch guiding, and nesting software packs parts to minimize offcut waste.

Key Features

1500×4000mm cutting area — full duct panel width plus length
Cuts 0.5-20mm material with 63A plasma power
Cutting speed up to 8000 mm/min for high-throughput nesting
CNC control with nesting software maximizes sheet yield
Cuts duct panels, fittings, blanks and gussets from one file

Still Marking and Torch-Cutting Panels by Hand?

Hand layout and torch cutting burns through operator hours and sheet metal: chalk lines, guided torches, heat-warped edges and offcuts everywhere. One fitting set can consume a whole shift.

A CNC plasma table cuts a full nested sheet overnight or between shifts — panels, fittings and gussets come out square, repeatable and packed tight, with the file recalled for any repeat order.

How It Transforms Your Production Line

The CNC Plasma Cutting Machine PC-1540 works on a proven principle — here is the step-by-step workflow that makes it possible:

Nest & Program

Parts are nested on the sheet in CAD/CAM and the program is sent to the CNC — or recalled from the stored job library.

Sheet Loading

The sheet is loaded on the table; the gantry references the edge automatically.

Plasma Cutting

The plasma head follows the programmed path at up to 8000 mm/min, cutting every part in the nest in one pass.

Parts Off the Table

Finished panels and fittings are unloaded ready for forming — no grinding, no hand finishing, no layout marks.

Technical Specifications & Performance Data

Every specification on this machine is chosen for a reason. The table below shows not just the numbers, but what each one means for your daily production:

Parameter	This Machine	What It Means for You
Control System	CNC with nesting software	Consistent, repeatable operation with minimal operator training
Construction	Heavy-duty steel frame	Vibration-free operation, 10+ year service life
Certification	CE certified	Meets European safety and quality standards
Warranty	2 years	Peace of mind with comprehensive factory warranty

Problems Solved: Before vs. After

We asked HVAC fabricators about their biggest production headaches. Here is how this machine directly addresses each one:

Without This Machine	With This Machine
✕ Hand layout and marking Hours of chalk lines per sheet, errors included	✓ CNC nesting Parts cut from file, first one identical to the last
✕ Torch-cut edge quality Heat-warped, slag-edged cuts need grinding	✓ Plasma-cut edges Clean edges ready to form, minimal cleanup
✕ High offcut waste Hand-nested sheets leave large unusable remnants	✓ Nesting software Parts packed tight, sheet yield maximized
✕ Slow one-off fittings Each fitting set is a fresh layout job	✓ Stored programs Any past part cut again in minutes

Where It Fits in Your Factory

This machine is versatile enough to serve multiple production scenarios. Here are the most common configurations our customers use:

📐

Duct Panel Production

Cut full-width duct panels, blanks and TDF/TDC flat patterns from one nested sheet.

🔧

Fitting Fabrication

Elbows, transitions, gussets and brackets cut to file — no fitting waits on hand layout.

🏭

Batch Production

Stored programs make repeat orders one-button jobs; the table runs between shifts.

✂️

General Sheet Metal

Any shop cutting brackets, plates and enclosures from flat sheet.

Frequently Asked Questions

Click each question to see the answer. These are the questions our sales engineers hear most often:

Preda Care

After-Sales That Never Expires

We know what keeps you up at night: "What if the machine breaks down and nobody helps me?" With Preda Care, that fear is gone. We stand behind every machine — not just for the warranty period, but for the entire lifecycle of your equipment. Years from now, when you need a spare part or technical advice, we will still be here.

🌍

Global Agent Network

Local service partners in 30+ countries. Get on-site support in your time zone, in your language. No waiting for a technician to fly in from China.

📦

Free Spare Parts Shipping

Wear parts fail — it is normal. We ship replacement parts worldwide by express courier, free of charge during warranty. Even after warranty, parts are at factory cost with fast shipping.

💻

Remote PLC Diagnostics

PLC or program issue? Our engineers connect directly to your machine via secure remote access. Most software problems are resolved within 2 hours — no service call, no downtime waiting.

⏱️

24-Hour Response Guarantee

WhatsApp, WeChat, or email — our technical team responds within 24 hours, every day of the year. Urgent issues get priority attention. You are never left waiting.

🔧

Lifetime Technical Support

Warranty expires — our support does not. Need advice on maintenance, troubleshooting, or upgrades 5 or 10 years from now? We are still just a message away.

🎓

Free Operator Training

Every machine includes comprehensive video training, operation manuals, and remote setup assistance. New operators? We train them too — at no extra cost, anytime.

Talk to Our Support Team → WhatsApp/WeChat: +86-18355321923 | jason@predamachine.com

Professional Packaging & Global Shipping

Every machine is professionally packaged and secured in a container for safe delivery to your port. We send you loading photos before the ship sails.

Overhead crane lifting machine for loading

Securing machine inside shipping container

✓ Wooden crate packaging ✓ Stretch film wrapping ✓ Container reinforcement ✓ Loading photos provided

Calculate Your Return on Investment

Based on average industry data, here is what a typical customer saves after installing this machine:

40-60%

Labor Cost Reduction

5-10x

Output Increase

6-12 months

Typical Payback Period

5-10%

Material Waste Reduction

* Figures based on average customer data for a shop producing 100-500 bends per day. Your actual results will vary based on production volume, labor rates, and current efficiency levels. Contact our engineers for a customized ROI calculation based on your specific operation.
